|Place of Origin:||China|
|Minimum Order Quantity:||1PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Nominal Size:||63 , 75 , 100 , 160||Accuracy Class:||Class1 . 6 , Class2 . 5 ( Φ 63 , 75 Mm )|
|Ingress Protection:||IP44||Connection:||G3 / 8 , G1 / 4 , G1 / 2 , Or NPT Or Others|
|Temperature:||-10 ℃ ~ + 70 ℃||Material Sensing Element:||Capsule Type , Copperally|
|Filling:||Dry Type||Connection Material:||Brass|

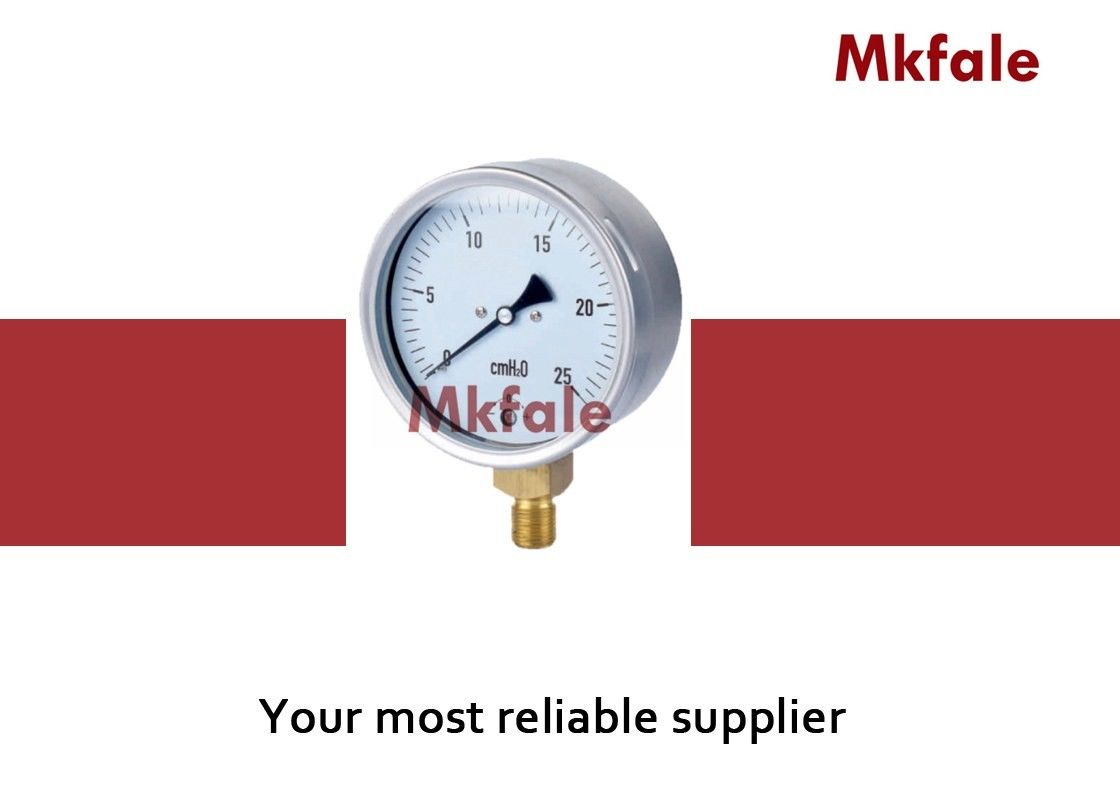

Brass Connection Stainless Steel Pressure Gauge , Liquid Filled Water Pressure Gauge
Technical Specification Table
STAINLESS STEEL CASE CAPSULE GAUGE
SMSBD Stainless Steel Case & Brass Connection
SMSSD Series is a premium capsule gauge designed for use in low pressure measurement on
extreme corrosive and severe environment. It is non fillable design and by removing the
bezeiring coulb access to zero adjustment zeroing screw on the front dial in replace of
adjustable pointer. Most popular in use in all industries such as process,mining,machine
tools,power plant,steel mills,pulp & paper,water & sewage and petrochemical plants.
Accuracy class 1.6, Interna calibration Device(ICD)
All stainless steel material,Blow-out-back, Knock-down system back and front flange
DIN case,bayonet lock design, Over pressure up to 30% of Full Scale
Restrictor screw standard, Standard dial unit ranges
Scale ranges -600..0,0..10 to 1000Mbar
Technical Specification :
Nominal Size : 63,75,100 and 160mm
Accuracy Class : Class 1.6,Class 2.5(Φ63,75mm)
Ingress Protection. : IP4
Connection Size : G3/8 , G1/4,G1/2 or NPT or others
Scale Range : Pressure 0..16 to 0..1000 mbar, *Φ63,75mm min range 16mbar
Vacuum -600 mbar..0, Campund -200..+400 mbar
Filling : Dry type
Tube Element Shape : Capsule type diaphragm tube
Operating Temperature : Ambient temperature -10° ..+70℃, Medium temperature 90℃ Max.
Temperature Error : Additional error when pressure element tmperature deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
Over Pressure Limit : 130% of Full Scale
Dial Graduation : Black graduation on white for single range, Black and red graduation on white for dual ranges
Design Material :
Casing and Bezel Ring : SS304
Sensing Element : Capsule type,SS316L
Connection : SS316L
Window : Plain instrement glass
Window gasket : Industrial rubber seal
Pointer : Black painted aluminium
Dial Plate : Aluminium alloy
