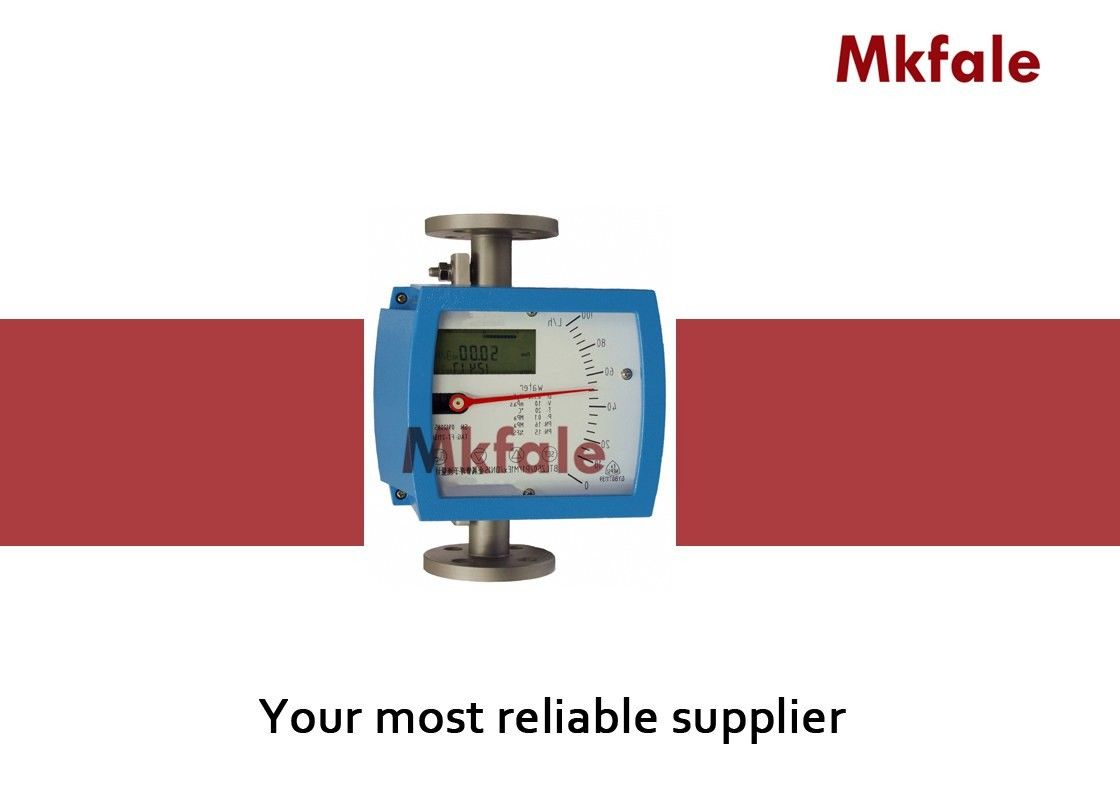

Low Cost Leak proof Variable Area Flow Meter Aluminum Alloy Housing Material Stainless Steel Tube

Low Cost Leak proof Variable Area Flow Meter Aluminum Alloy Housing Material Stainless Steel Tube

Low Cost Leak proof Variable Area Flow Meter Aluminum Alloy Housing Material Stainless Steel Tube

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMRTZ

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Size: 15 ~ 150 Mm Fluid Viscosity: 300 CP Max .
Current Output: 4 – 20 MA ( 2 Wire ) Ambient Temperature: 25 To 60 ℃
Housing Material: Aluminum Alloy Cable Entry: Standard : M20 Option : 1 / 2 “ NPTF

Low Cost Leakproof Variable Area Flow Meter Aluminum Alloy Housing Material Stainless Steel Tube








Water Electromagnetic Flow meter ,Ceramic Liner electromagnetic flow meter , Sanitary electromagnetic flow meter , Ultrasonic level meter , Mass flow meter , Variable area flow meter ( Metal Rota Meter ) , oil liquied gauge , Bimetal thermometer,pressure transmitter , level transmitter , Temperature transmitter , Water solenoid Valve , Steam Solenoid Valve






Technical Specification Table



Size :

15 , 20 , 25 , 40 , 50, 65 , 80 , 100 , 125 , 150 mm



Turndown Ratio

10 : 1 ( 20 : 1 Optional )



Repeatability

± 0 . 5 % value of reading



Material Tube & Float

Stainless Steel 304

Stainless Steel 316

Stainless Steel 316L

Stainless Steel + PTFE Liner



Temperature

- 80 ~ +200 ℃ ( Standard )

- 25 ~ + 100 ℃ ( LCD Display )

0 ~ +85 ℃ ( PTFE Liner )

- 80 ~ + 400 ℃ ( Optional )



Flange Type

JIS 10 K / JIS 20K / JIS 40K

ANSI 150 # / ANSI 300 # / ANSI 600 #

DIN PN 10 / PN 16 / PN25 / PN40



Ambient Temperature

-25 to 60 ℃



Protection Class

IP65

Intrinsically Safe , Eex ia IIC T5

Explosion Proof , Ex d IIB T6



Pressure Loss

0 . 07 ~ 0 . 7 Kg / cm²



Power Supply

11 ~ 36VDC ( 2 wire 4 – 20 mA )

Ni – MH Battery ( 3 years working hours )



Measuring Range

Liquid – 1 ~ 200000 Liter / Hr

Gas – 0.03 ~ 4000 m³ / Hr

Accuracy

± 1 . 6 % ( Standard )

± 1 . 0 % ( Optional )

Repeatability ± 0 . 5 % value of reading
Material Tube & Float

Stainless Steel 304

Stainless Steel 316

Stainless Steel 316L

Stainless Steel + PTFE Liner

Standard Pressure

40 Kg / cm ² ( 15 mm ~ 50mm )

16 Kg / cm ² ( 65 mm ~ 200mm )

Fluid Viscosity 300 CP Max .
Communication

RS485 ( MODBUS Protocol )

HART signal ( Compatible )

Local Display Mechanical Indicator ( Standard )
Digit Dsplay

4 Digit Flowrate

8 Digit Totalizer

Current Output 4 – 20 mA ( 2 Wire )
Load Max . 600 Ω
Pulse Output Open collector ( Scale Pulse )
Rating 3 to 30VDC , 100 mA Max .
Data Storage Operation parameters and totalizer figures are stored by EEPROM for more than10 year
Alarm Output 2 point ( Open collector )
Rating 3 to 30DDC , 100mA Max .
Keypad 3 internal keys for programming and display control
Housing Material Aluminum Alloy
Cable Entry Standard : M20 Option : 1 / 2 “ NPTF



Features



Consistent overall length

Heating jacket design

4 - 20mA & scale pulse output

Low pressure loss in gas and steam application

Damper for Gas / Steam application

4 digit flowrate & 8 digit totalizer

Local indication without auxiliary power

Intrinsically safe & explosion proof for hazardous area



Why choose us



1: Reliable quality assured and active after-sell service

2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Various style for each products and completely series industry instruments.



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
