|Place of Origin:||CHINA|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Closed|
|Temperature:||0 ~ 65 ℃||Connection:||Thread|
|Action:||Direct Acting||Body:||Forged Brass , Stainless Steel|
|Pressure:||0 - 20kgf / Cm ²||Port Size:||1 / 4" ,3 / 8 " ,1 / 2 "|

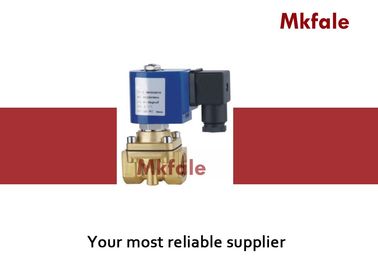

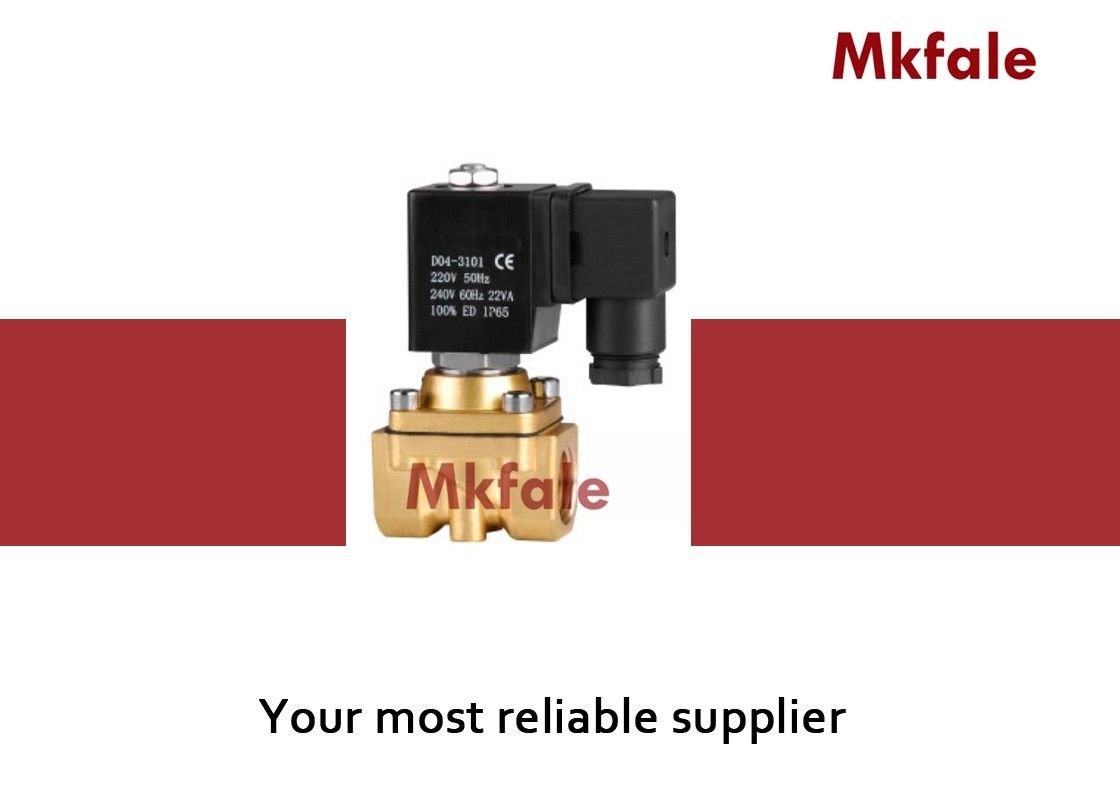

2 Way Water Solenoid Valve Threaded Connection With Forged Brass Body
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W , it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type (differential) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of
solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
4 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid
valve , general solenoid valve is better claim to medium cleanness
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
6 . Power supply current and power consumption should be selected according to the output
capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the
VA value is higher .
Ction time is very short at high frequency generally choose directly acting , large diameter
choose fast series .
Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline, otherwise life will shorten or other unexpected circumstances .
Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve . Explosive environment must choose corresponding anti-explosion type .
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
1 : 2 / 2 Way normally closed , closed when de - energized open , open when energized .
2 : Max pressure tolerance : 25 kgf / cm2
3 : Working Pressure : 0 ~ 20kgf / cm2
4 : Ambient temp : 0 ~ 65 ℃
5 : Flow as the arrow , mounts in any position ; best position is solenoid vertical and upright direction
6 : Only 1 / 4 " & 3 / 8" & 1 / 2 " connection size , orifice Φ 10mm , can be widely used in the corresponding flow and pressure system , replace the same connection size but big orifice valve , can save a lot of cost
7 : Voltage : AC220V / 230V / 240V / 110V / 24V / 50 / 60HZ DC24V / 12V
8 : Seals : can choose NBR , EPDM , VITON to fit the on / off control of different media
9 : Body : Brass
Why choose us
1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Provide free products information .
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
