|Place of Origin:||CHINA|
|Model Number:||Z4 2 / 2 - Way Normally Closed|
|Minimum Order Quantity:||1 Pc|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Closed|

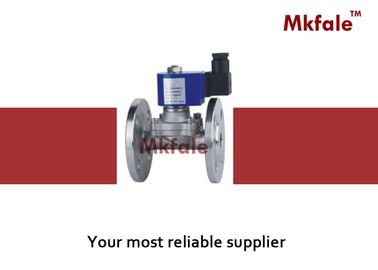

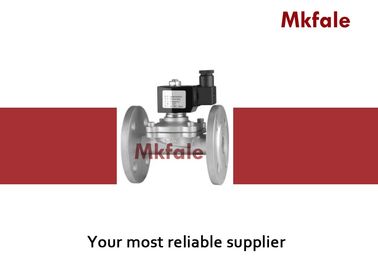

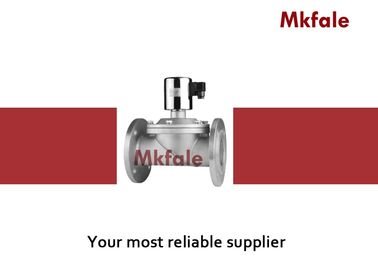

|Temperature:||0 ~ 65 ℃||Connection:||Thread , Flange ( DN 25 - 100 )|
|Action:||Direct Acting||Body:||Stainless Steel 304 / 316|
|Pressure:||0 - 10 Kgf / Cm ²||Port Size:||3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "|

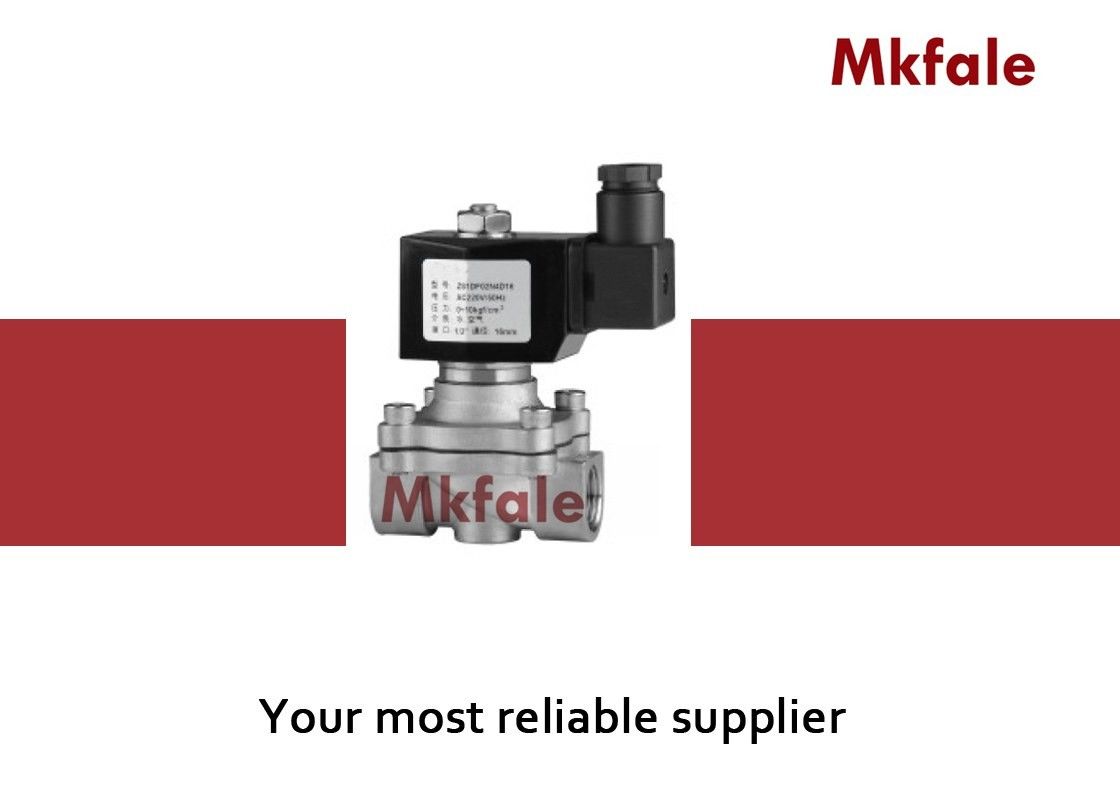

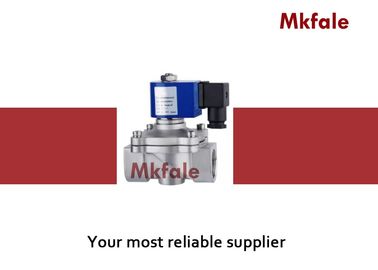

Normally Closed 2 Way Water Valve , Direct Acting Gas Solenoid Valve For Industry
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid
valve , general solenoid valve is better claim to medium cleanness
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
6 . Power supply current and power consumption should be selected according to the output
capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .
Ction time is very short at high frequency generally choose directly acting , large diameter
choose fast series .
General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
1: 2 - Way normally closed solenoid valve , Closed when de - energized , open when energized .
2: Body material : 304 stainless steel and 316 stainless steel .
3: Fluids Temp : 0 ℃ ~ 120 ℃ ; Ambient Temp . 0 ℃ ~ 65 ℃
4: Serialized products , small in size , large flow rate , widely use .
5. Flow as the arrow , mounts in any position ; Best position is Solenoid Vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60 HZ 24VDC / 12VDC ;
Voltage Tolerance : + 10 % TO - 10 % applicable voltage
7: Coil can fix Germany Nass Coil , for orifice under DN25 only .
8: This series valves are offered NBR ` VITON ` EPDM etc for Seals and diaphragm to provide on - off control of various fluids .
Why choose us
1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
