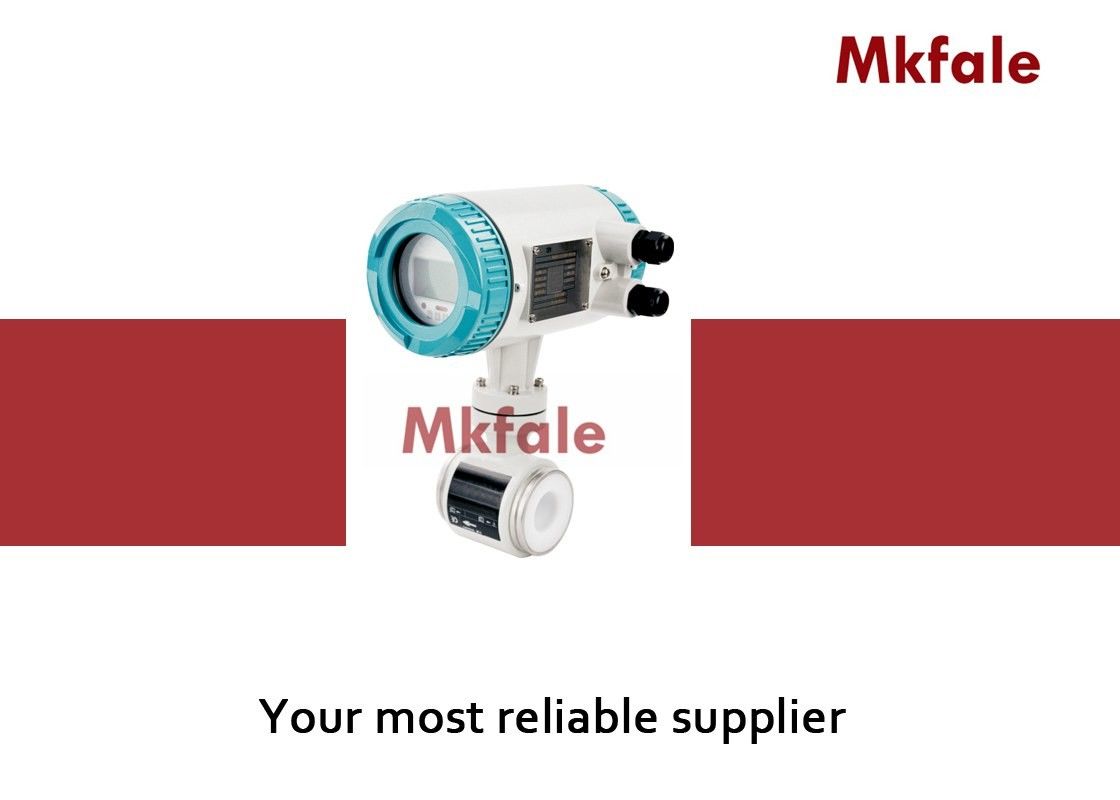

SMCS Clamped Sanitary Electromagnetic Flow Meter Integrated Type With Cast Steel Body

SMCS Clamped Sanitary Electromagnetic Flow Meter Integrated Type With Cast Steel Body

SMCS Clamped Sanitary Electromagnetic Flow Meter Integrated Type With Cast Steel Body

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMCS Integrated Type

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Nominal Diameter: DN25 ~ DN200 Body: Cast Steel , Stainless Steel 304 / 316L
Liner: PTFE , PFA Electrode: SUS316L , HC , HB
Power: AC100 ~ 240V , DC12 ~ 36V Accurary: 0 . 5 %
Application: General Type , Ex - Proof Type Temperature: - 20 ℃ ~ + 150 ℃

SMCS Clamped / Sanitary Electromagnetic Flow Meter Integrated Type






Integrated type , Remote separate type





Technical Specification Table



SMCS

CLAMPED/SANITARY

Electromagnetic

Flow Meter

Integrated type
Nominal Diameter DN25~DN200
Body Material Cast steel; SS304; SS316L
Liner Material PTFE; PFA
Electrode Material SUS316L,HC,HB
Structure Type Integral type; Remote type
Power AC100~240V, DC12~36V
Accuracy 0.5%
Application General type,Ex-proof type
Ground Ring SUS316L,HC,HB,Ti
Min Electrical Conductivity 5μs/cm
Medium Temperature -20℃~+150℃
Output Signal 4~20mA,HART,MODBUS,RS485,PROFIBUS




Technical Specification Table



ND Size Pressure Weight kg
10 1/4 4 6
15 1/2 8
20 3/4 10
25 1 12
32 1 1/4 13
40 1 1/2 14
50 2 15
65 2 1/2 18
80 3 20
100 4 25
125 5 28
150 6 30
200 8 1.6 50
250 10 70
300 12 95
350 14 120
400 16 140
450 18 160
500 20 200
600 24 280
700 28 1 350
800 32 400
900 36 480
1000 40 550
1100 42 0.6 600
1200 48 660
1400 56 750
1500 60 800
1600 64 850
1800 72 980
2000 80 1200
2200 84 1600
2400 96 2000
2600 104 2400
2800 112 2700
3000 120 2900




Why choose us


1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee



FAQ



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
