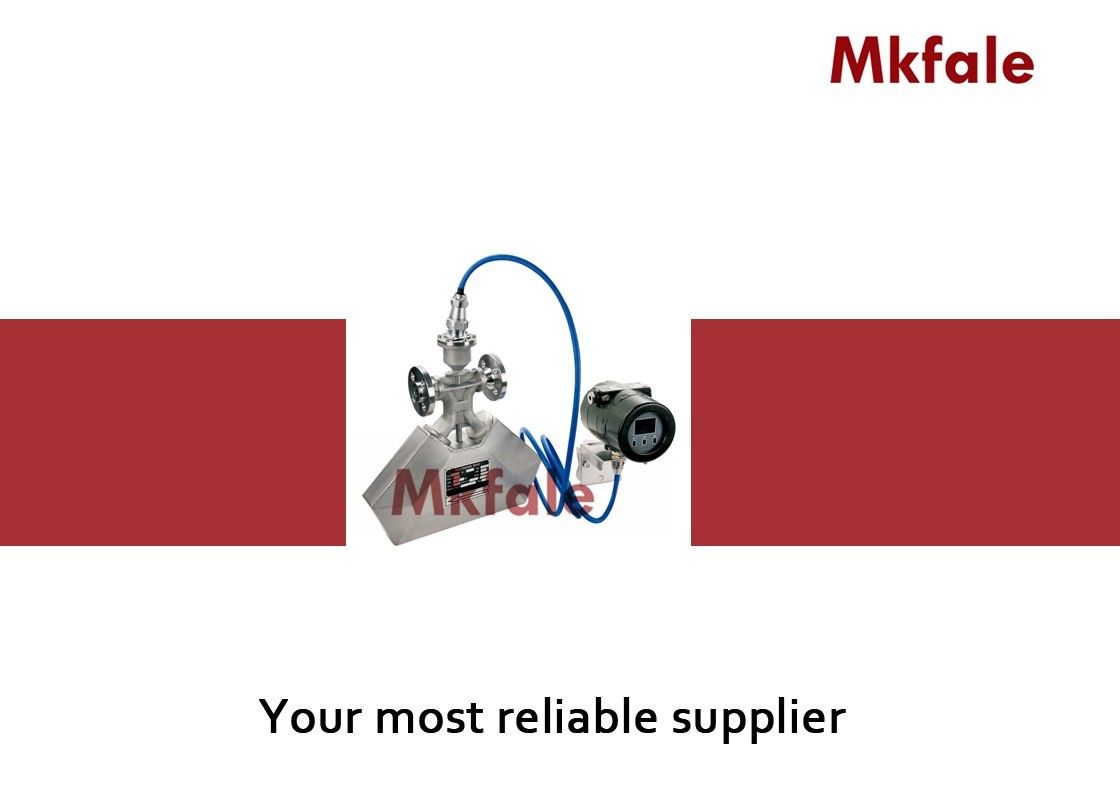

SMMF Mass Flow Meter Oil Meter , Stainless Steel High Temperature Flow Meter

SMMF Mass Flow Meter Oil Meter , Stainless Steel High Temperature Flow Meter

SMMF Mass Flow Meter Oil Meter , Stainless Steel High Temperature Flow Meter

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMMF

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Temperature: 200℃ 380 ℉ Material: Stainless Steel 316
Material Of Shell: Stainless Steel 304 Caliber: DN10 ~ DN200
Series: B Standard Type , J Economic Type , T Special Type Flange Standard: JB ( Thread Standard : M , G , NPT Etc )

SMMF Mass Flow Meter Oil Meter High Temperature Mass Flow Meter




Technical Specification Table


SMMF Mass Flow Meter

Application:

Matching SMMF intelligent sensor,HART,MODBUS,RS485 output are optional.
New double bend Coriolis mass flow meter,suitable for liquid and gas
High temperature:200℃380°F
Material of measuring pipe:SS316
Material of shell:SS304

Caliber DN10~DN200
Series B Standard type,J Economic type, T Special type
Flange Standard JB(thread standard:M,G,NPT etc.)
Flange Specification (Thread specification) converter connection method


 Technical Parameter of sensor


Model Caliber ( mm ) Flow Range ( kg / h )
SMMF-006 6 0~900~1000
SMMF-010 10 0~1800~2100
SMMF-015 15 0~3600~4500
SMMF-020 20 0~6000~7200
SMMF-025 25 0~9600~12000
SMMF-032 32 0~18000~21000
SMMF-040 40 0~30000~36000
SMMF-050 50 0~48000~60000
SMMF-080 80 0~150000~180000
SMMF-100 100 0~240000~280000
SMMF-150 150 0~480000~600000
SMMF-200 200 0~900000~1200000



Unique design delivers unparalleled measurement sensitivity and stability
Guarantees consistent, reliable performance over the widest flow range
Designed to minimize process, mounting, and environmental effect




Why choose us



1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: One year quality guarantee





FAQ



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
