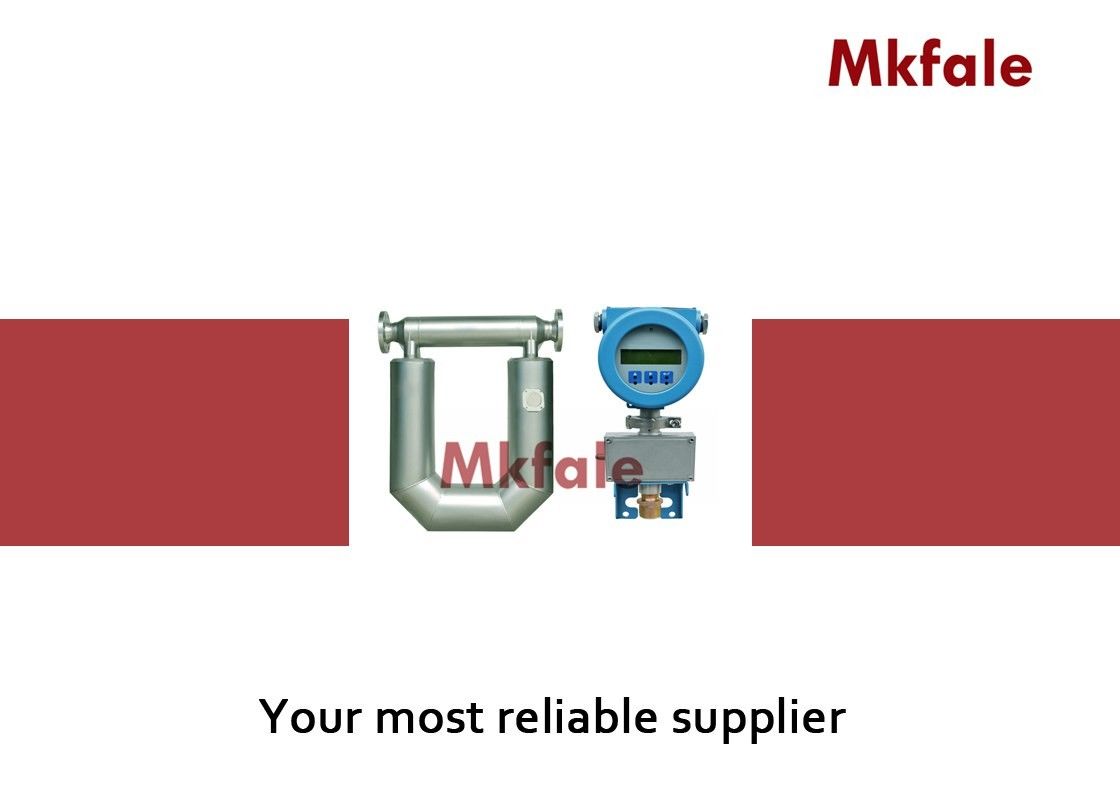

SMCP Coriolis Type Mass Flow Meter RS485 HART DN6 - DN250 Flange Type

SMCP Coriolis Type Mass Flow Meter RS485 HART DN6 - DN250 Flange Type

SMCP Coriolis Type  Mass Flow Meter RS485 HART DN6 - DN250 Flange Type

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMCP

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Accuracy: ± 0 . 15 % / ± 0 . 2 % Dens. Accuracy: ± 2kg / M³
Temp. Range: - 40 ~ 350 °C Process Pressure: ≤ 6 . 3MPa
Digital Comm.: RS - 485 / Modbus / HART / FF ( Optional ) Power Supply: 24V DC / 220V AC

SMCP Coriolis Type Mass Flow Meter RS485 HART DN6 - DN250 Flange Type







Safety & Protection



Tested and Issued certification by National Explosive-proof Electrical Products Quality Supervising and Testing Center:


Explosion-proof Mark:

N10~ N80 Ex ib llC T3~T6
N100~N250 Ex ib llC T6 Gb(T6 Includes T1 ~T6)


Explosion-proof Certification No:

N10~N80 CNEx 10.0468
N100~N250 CNEx 12.2660


Protection Level: IP67(Sensor)
“T” temperature groups refer to the maximum surface temperature of the sensor at the working
temperature of 55℃.



SMCP Coriolis Type  Mass Flow Meter RS485 HART DN6 - DN250 Flange Type



Explosion-proof performance is accordance with GB3836.1-2010,GB3836.3-2010,GB3836.4-2010.
Applications: applied in the explosive dangerous location zone 1 and zone 2, device type is llC, which is
compatible with llA,IIB, temperature groups are T1~T6.


Note:The Ex-proof performance will not be affected by the installation of sensor and transmitter(remote
or compact installation).




N Series Coriolis Mass Flow Meter


Including SMCN series Sensor and SMDPT100 Transmitter, SMCN Series Coriolis Mass Flow Meter with the
measuring accuracy is of ±0.15%~±0.20%.



Advantages & Characteristics



Applying double U or Double C type flow tubes designing with the high accuracy
measurement;



Supplying the complete measurements of mass flow, volume flow, density, temperature and
calculated parameters, you can receive the reliable measured results without any complicated
calculation, which can directly replace the volume meter;



Ease of installation without rectification and filtering parts, no need special installation
required straight pipes;



No moving parts and no need frequent maintenance; no need to be dismounted frequently for
calibration because of high stable performance;



Allowing to run with low flow range to reduce pressure loss and power consumption;



Compact installation to save the installation costs;



Compatible with P Series A(flange intervals)size;



With the ultra-high accurate measurement and long time stability;



With strong generality, enabling the connected transmitter to be interchanged, ease of
maintenance.



Sensor



Nominal Size : DN5~DN250

Flow Accuracy : ±0.15% ±0.20%

Dens. Accuracy : ±2kg/m3

Temp. Range : - 40 ~ 350 °C

Process Pressure : ≤6.3MPa

Measuring Tubes : 316L

Transmitter : DPT100



Transmitter



Installation Type : Compact Remote

Power Supply : 24V DC , 220V AC

Current Output : 4~20mA(active, the output variables can be configured)

Frequency Output : 0~10KHz(active or passive,the output variables can be configured )

Digital Comm. : RS-485 / Modbus / HART/FF (optional)

Human-machine Interface : 3 photoelectric keys, 2 lines LCD, configuration, check, zero calibration

Ex-mark : Exde [ib]I ICT6



Note


For the model N100 ,N150 ,N200 ,N250, the ambient temperature of the power amplifiers is
-20℃~+55℃, it is not allowed to cover or wrap, nor apply heat tracing to the power amplifiers in the
process of heat tracing, otherwise the internal components will be damaged.



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
