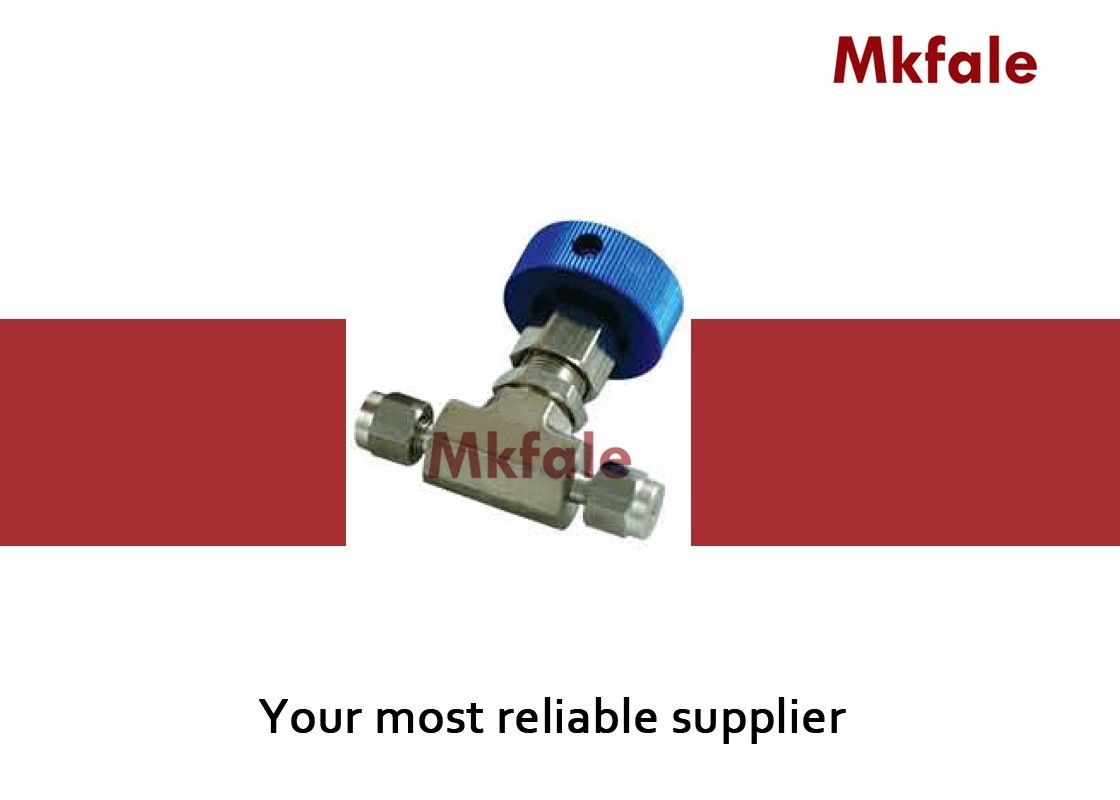

Precision Instrument High Pressure Needle Valve Socket Welding Connection

Precision Instrument High Pressure Needle Valve Socket Welding Connection

Precision Instrument High Pressure Needle Valve Socket Welding Connection

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: MNV Soket Welding Connection

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Group: Mini Needle Valve Dimensions: 1 / 4 " , 3 / 8 " , 1 / 2 " , 6mm , 8 Mm , 10mm , 12mm
Connection Type: Soket Welding Connection Option: Angle Type
Temperature: - 40 ℃ ~ 200 ℃ Feature: 100 % Factory Testing

Precision Instrument High Pressure Needle Valve Socket Welding Connection








Dimension



Basic Mode No . Weld Type
Dimension OD
MNV – 02SW 1 / 4 6 . 35mm
MNV – 6SW 6mm 6mm
MNV – 8SW 8mm 8mm
MNV – 03SW 3 / 8 9 . 52mm
MNV – 10SW 10mm 10mm
MNV – 04SW 1 / 2 12 . 7mm
MNV – 12SW 12mm 12mm





Ordering Information



Group : MNV = Mini Needle Valve



Dimensions  : 02 = 1 / 4 " , 03 = 3 / 8 " , 04 = 1 / 2 " , 6 = 6mm , 8 = 8mm , 10 = 10mm , 12 = 12mm



Connection Type :  SW = Soket Welding Connection



Option : L = Angle Type






Feature & Benefits



1 . Bonnet lock pins prevent accidental loosening .

2 . Free- swiveling ball end stem ( metal seat , std . ) assure bubble tight valve closure without seat galling . The special hardened ball seat is ideal for both gas and liquid service .

3 . Max . pressure rating : SS316 , 6000Psi

BRASS , 3000Psi

4 . Using temperature : - 40 ℃ - - - 200 ℃ ( Special require that could raise to 650 ℃ )

5 . 100 % factory testing

6 . Color choose of handle : Blank , Blue , Red , White .



Material of Bonnet / Stem / Seat



Parts Name Material Description
Body Stainless Steel ASTM479 – 316 / 304
Bonnet Stainless Steel ASTM479 – 316 / 304
Gland Retainer Stainless Steel ASTM479 – 316 / 304
Washer Stainless Steel ASTM479 – 316 / 304
Packing PTFE PTFE / GRAFOIL
Packing Washer Stainless Steel ASTM479 – 316 / 304
Stem Stainless Steel ASTM479 – 316 / 304
Lock Nut Stainless Steel ASTM479 – 316 / 304
Grub Screw Stainless Steel ASTM 276 - 304
Handle Stainless Steel ASTM 276 - 304
Dust Cap PLASTIC
Non – Rotating End Tip Stainless Steel ASTM479 – 316 / 304





Why choose us



1: Provide free products information .

2: Various style for each products and completely series industry instruments.
3: Large stock for fast shipping .

4: Reliable quality assured and active after-sell service
5: High quality with competitive price .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.





Precision Instrument High Pressure Needle Valve Socket Welding ConnectionPrecision Instrument High Pressure Needle Valve Socket Welding Connection
