    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Certification: ISO9001
    Model Number: Two Valve Manifolds

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: 5 - 30 Work Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs
    Contact Now
    Detailed Product Description
    Body Material: Stainless Steel Washer Material: Stainless Steel
    Packing Material: PIFE Handle Material: Stainless Steel
    Lock Pin Material: Stainless Steel TYPE: Single Flange T Type , Block Type R Type
    High Light:

    mini Needle Valve

    ,

    metering needle valve

    Two Valve Manifold Calibration Manifold Needle Valve Manifolds Free - Swiveling Type Flange Type and Block Type​




    1 . Bonnet lock pins prevent accidental loosening
    2 . Free - swiveling ball end stem ( metal seat , std ) assure bubble tight valve closure without seat galling . The special hardened ball seat is ideal for both gas and liquid service
    3 . All stem packing is located below the stem threads prevent galling , corrosion and contamination by the process medias .
    4 . The packing is adjustable with less possibility of bonnet / body leaks .
    5 . Full back - seated bonnets prevent accidental stem removal and blowout . Unique design minimizes emissions while offering easy access to the packing .
    6 . Max pressure rating ( metal seated ) . 6000 PSIG at 200 ℉ (414 barg at 93 ℃ )
    7 . Pressure rating at max . temp . : PTFE - 4130 psig at 450 ℉ ( 284bar at 232 ℃ ) and Grafoil - 1500 psig at 1000 ℉ ( 103bar at 537 ℃ ) .
    8 . The orifice size : 0 . 156 inch ( 4 . 0 mm )

    Material of Construction


    Parts NameMaterialDescription
    BodyStainless SteelASTM 479 – 316 / 304
    BonnetStainless SteelASTM 479 – 316 / 304
    Gland RetainerStainless SteelASTM 479 – 316 / 304
    WasherStainless SteelASTM 479 – 316 / 304
    PackingPTFE
    Packing WasherStainless SteelASTM 479 – 316 / 304
    StemStainless SteelASTM 479 – 316 / 304
    Lock NutStainless SteelASTM 479 – 316 / 304
    Grub ScrewStainless SteelASTM 276 - 304
    HandleStainless SteelASTM 276 - 304
    Lock PinStainless SteelASTM 276 - 304
    Dust CapPlastic
    Non – Rotating End TipStainless SteelASTM 479 – 316 / 304


    Option Available :

    1 . Ball tip & Vee tip are available
    2 . The other material and bonnet type is available upon request .

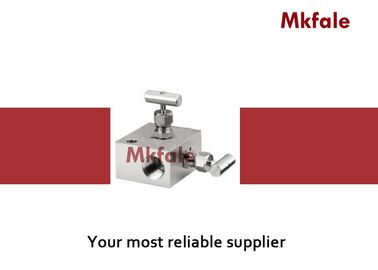

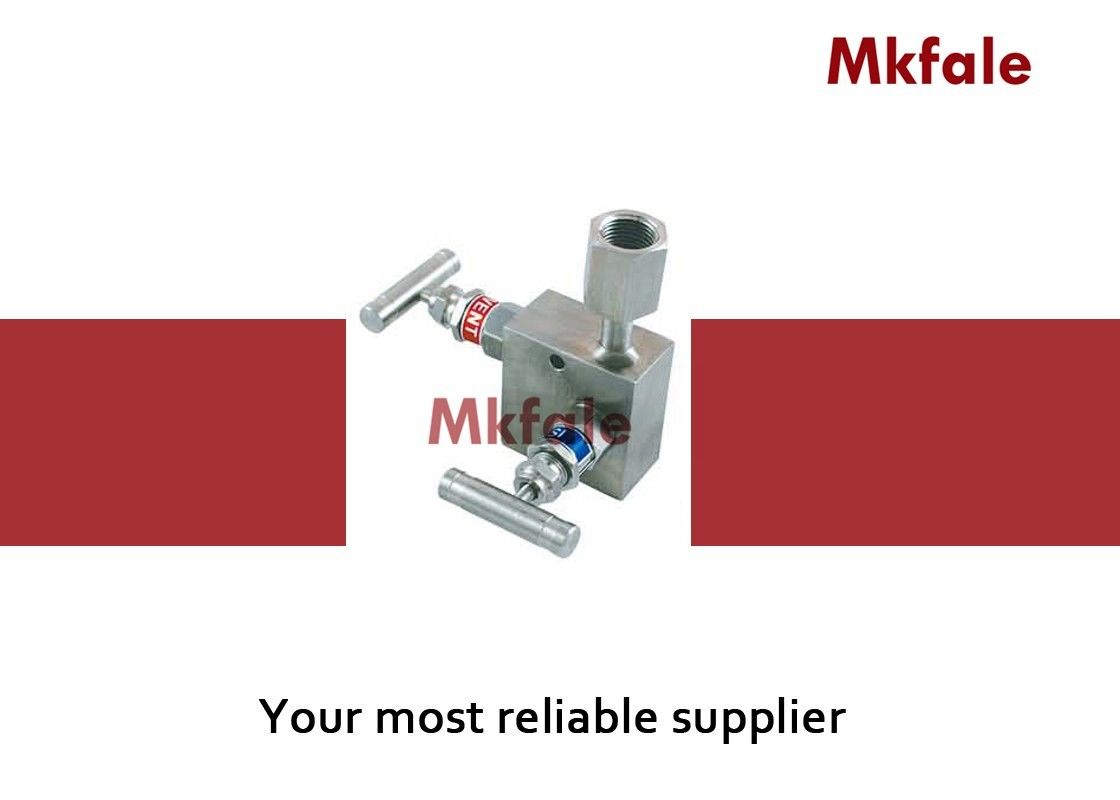

    Block Type

    Two valve calibration mainfold provides an economical and convenient method of blocking , bleeding and calibrating pressure instruments . The block type ( R type ) may be mounted rigidly to a mounting bracket , providing a safe isolation valve and the single flanged type ( T Type ) is directly mounted while reducing the number of fittings and space required for installation .



    Two Valve Manifold Calibration Manifold  Needle Valve Manifolds Free - Swiveling Type  Flange Type and Block Type
