|Place of Origin:||CHINA|
|Model Number:||P2 Small Series 2 / 2 - Way|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Closed|
|Temperature:||0 ~ 65 ℃||Connection:||Thread|
|Action:||Direct Acting||Body:||Forged Brass , Stainless Steel 316|
|Pressure:||0 - 13 Kgf / Cm ²||Port Size:||3 / 8 "|

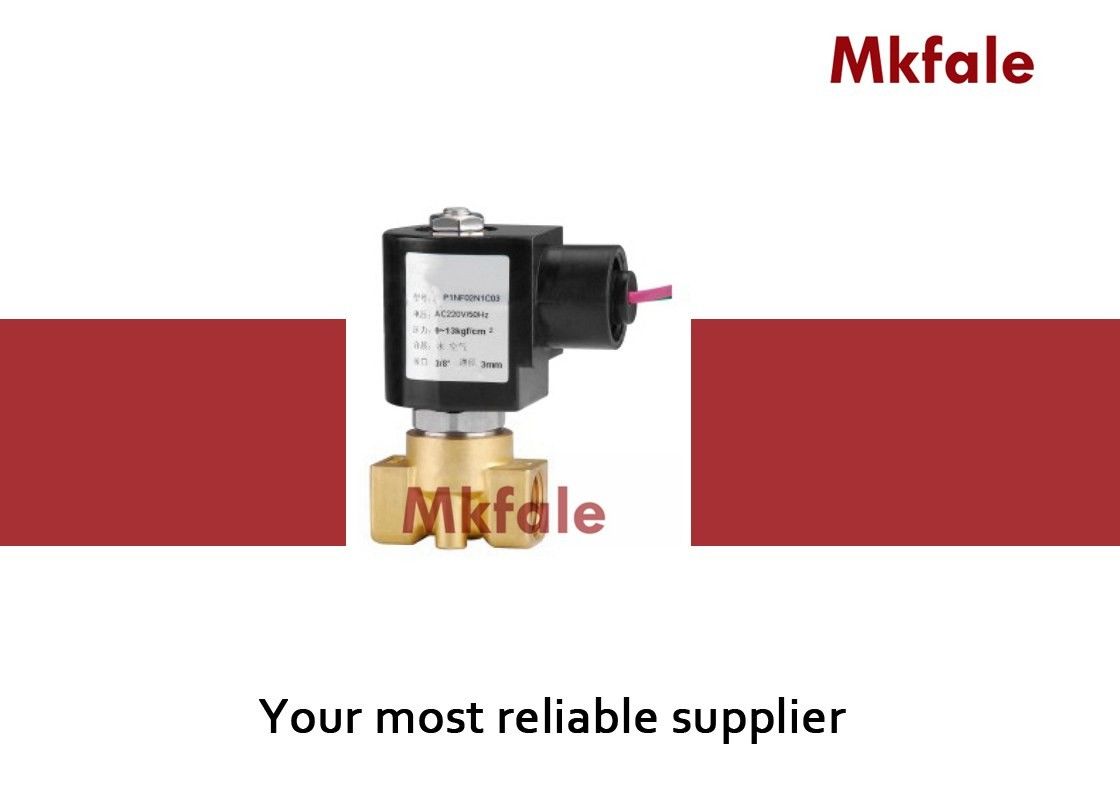

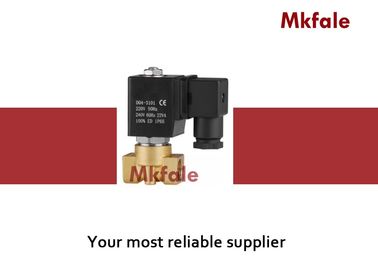

P2 Small Series Water Solenoid Valve , Gas Solenoid Shut Off Valve 15 Kgf / Cm ² Max Pressure Tolerance
1 . Fluid temperature must be less than the marked temperature .
2 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .
3 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
4 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness
5 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .
1.General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
2. Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
3. Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
1: 2 / 2 way normally closed , closed when de - energized open when energized .
2: Max pressure tolerance: 15 kgf / cm ²
3: Ambient temp : 0 ~ 65 ℃
4: Flow as the arrow , mounts in any position ; best position is solenoid vertical and upright direction
5: Only 3 / 8 " connection size , orifice 3 and 4 mm , can be widely used in the corresponding flow and pressure system , replace the same connection size but big orifice valve , can save a lot of cost .
6: Voltage : AC220V / 230V / 240V / 110V / 24V 50 / 60HZ DC24V / 12V
7: Seals : Can choose NBR ` EPDM ` VITON ` to fit to control of different media ;
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
