|Place of Origin:||CHINA|
|Model Number:||P3 Compact Series|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Open|
|Temperature:||0 ~ 65 ℃||Connection:||Thread|
|Action:||Direct Acting||Body:||Forged Brass , Stainless Steel 316|
|Pressure:||0 - 30 Kgf / Cm ²||Port Size:||1 / 8 " ,1 / 4"|

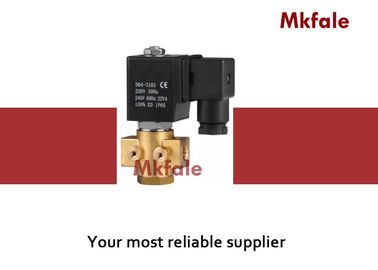

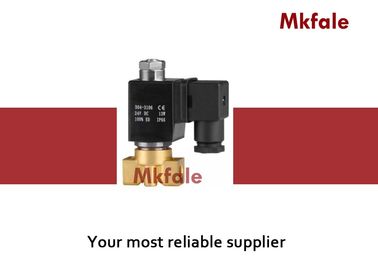

Industrial Solenoid Electric Solenoid Valve High Precision For Plumbing Or Mechanical Systems
1 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .
2 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
3 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .
1. Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .
2. Explosive environment must choose corresponding anti - explosion type.
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
1: 2 Way normally open solenoid valve , Open when de - energized , Closed when energized.
2: Serialized products , small in size , large flow rate widely use .
3: Body material : forged brass . 316 stainless steel .
4: Ambient Temp . 0 ℃ ~ 65 ℃ , Fluids Temp 0 ℃ ~ 130 ℃ .
5: Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC
7: This series valves are offered NBR , VITON , EPDM etc , For Seals and diaphragm to provide on - off control of various fluids .
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
