|Place of Origin:||CHINA|
|Model Number:||G1 High Pressure Solenoid Valve|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Payment Terms:||L/C, T/T, Western Union|
|Medium:||Water , Hot Water , Air , Oil Etc||Type:||Normally Closed|
|Temperature:||0 ℃ ~ 65 ℃||Connection:||Thread|
|Action:||High Pressure||Body:||Forged Brass , Stainless Steel 304|
|Pressure:||0 ~ 100 Kgf / Cm ²||Port Size:||1 / 8 " ,1 / 4" ,3 / 8 " ,1 / 2 " ,3 / 4 " ,1 "|

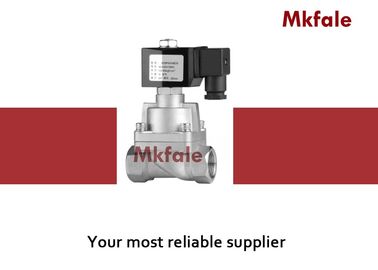

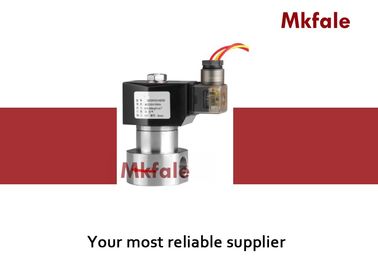

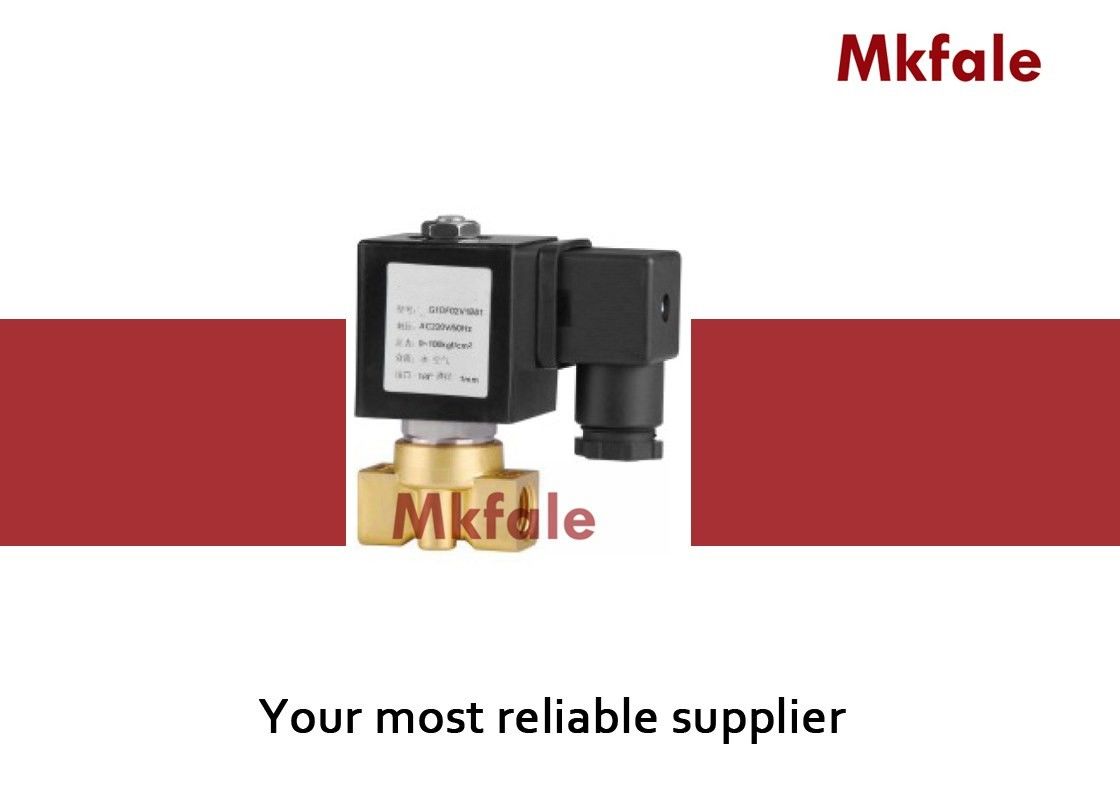

High PressureWater Solenoid Valve Normally Closed Anti - Explosion Solenoid Valve
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .
4 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
5 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness
Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .
1 . General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
2 . Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products.
1: 2 Way normally closed solenoid valve ; Closed when de - energized , open when energized .
2: Special design , Serialized products . small in size . large flow rate . widely use .
3: Body material: SS304 .
4: Ambient Temp . 0 ℃ ~ 65 ℃ ; Fluids Temp : 0 ℃ ~ 110 ℃ .
5: Flow as the arrow . mounts in any position ; Best position is Solenoid vertical and upright diriction .
6: Voltage : 220VAC / 230VAC / 380VAC / 50 / 60 / HZ 24VDC ; Voltage Tolerance : +10 % to - 10 % applicable voltage ; Coil can fix Germany Nass Coil .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
