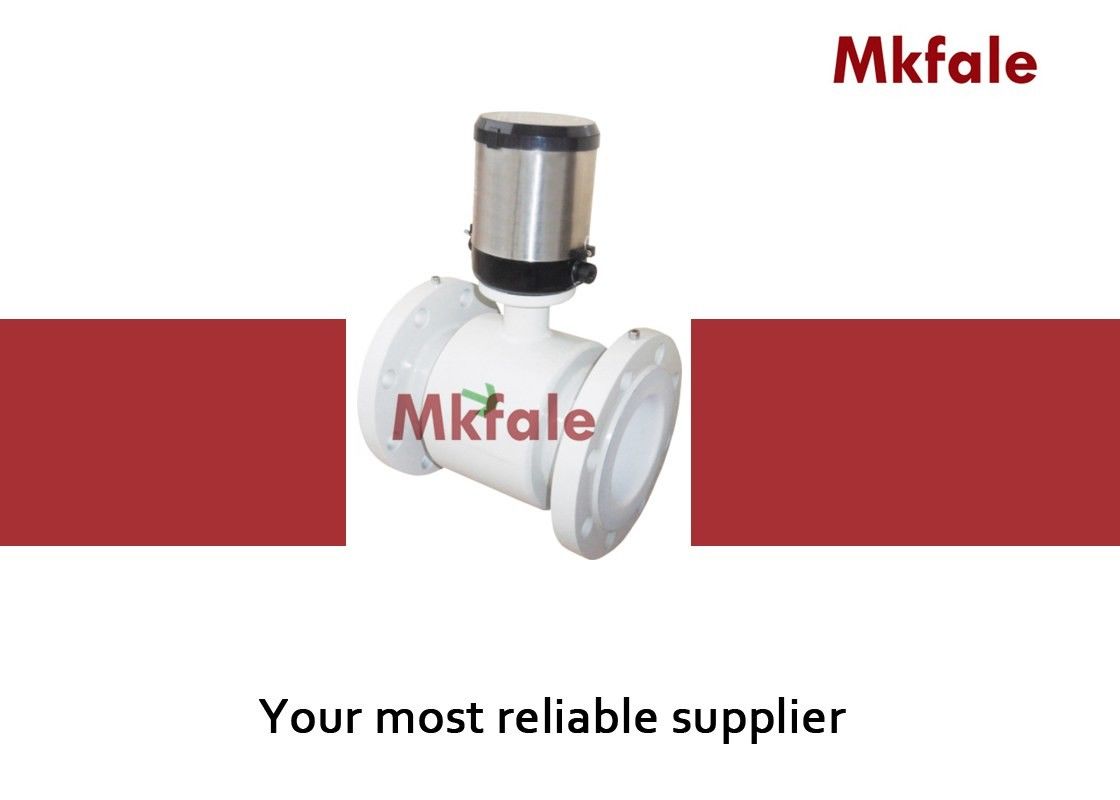

SMBP Battery Powered Converter Water Flow Meter With Flange Connection Sensor

SMBP Battery Powered Converter Water Flow Meter With Flange Connection Sensor

SMBP Battery Powered Converter Water Flow Meter With Flange Connection Sensor

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMBP With Flange Integrated Type

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Diameter: DN10 ~ DN800 Conductivity: Clean Water > 20us / Cm
Temperature: - 20 ℃ ~ 50 ℃ Record: Total Meters
Humidity: ≤ 95 % Protection Class: IP68

SMBP Battery Powered Converter Flow Meter With Flange Connection  Integrated Type








Integrated Type , Remote separate Type



Technical Specification Table



SMBP

Battery Powered

Converter with

Flange Connection

Sensor

Integrated type



Nominal Diameter DN10~DN800
Accuracy ±0.5
Medium conductivity Clean water> 20us/cm
Flow rate 0~15m/s
Working temperature -20℃~50℃
Operating humidity ≤95%
Protection class IP68
Measurement parameters Instantaneous flow,instantaneous flow rate
Record parameters Total meters
Detection and alarm parameters Fluid empty pipe detection alarm,the excitation current detection alarm
Scaled output signal Unit volume flow pulse
Communication Rs485 (modbus protocol),GPRS




 Battery life ( month )





Measuring cycle 3S 4S 5S 6S 7S 8S 9S 10S 11S 12S 13S 14S 15S 30S
50mA excitation 12 16 20 24 28 32 36 40 40 48 52 56 60 120
20mA excitation 19 26 33 39 46 53 59 66 66 79 86 93 100 200






Why choose us


1: Various style for each products and completely series industry instruments.

2: Customize according to your special request .
3: Provide free products information .

4: Large stock for fast shipping .
5: High quality with competitive price .




FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .


Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
