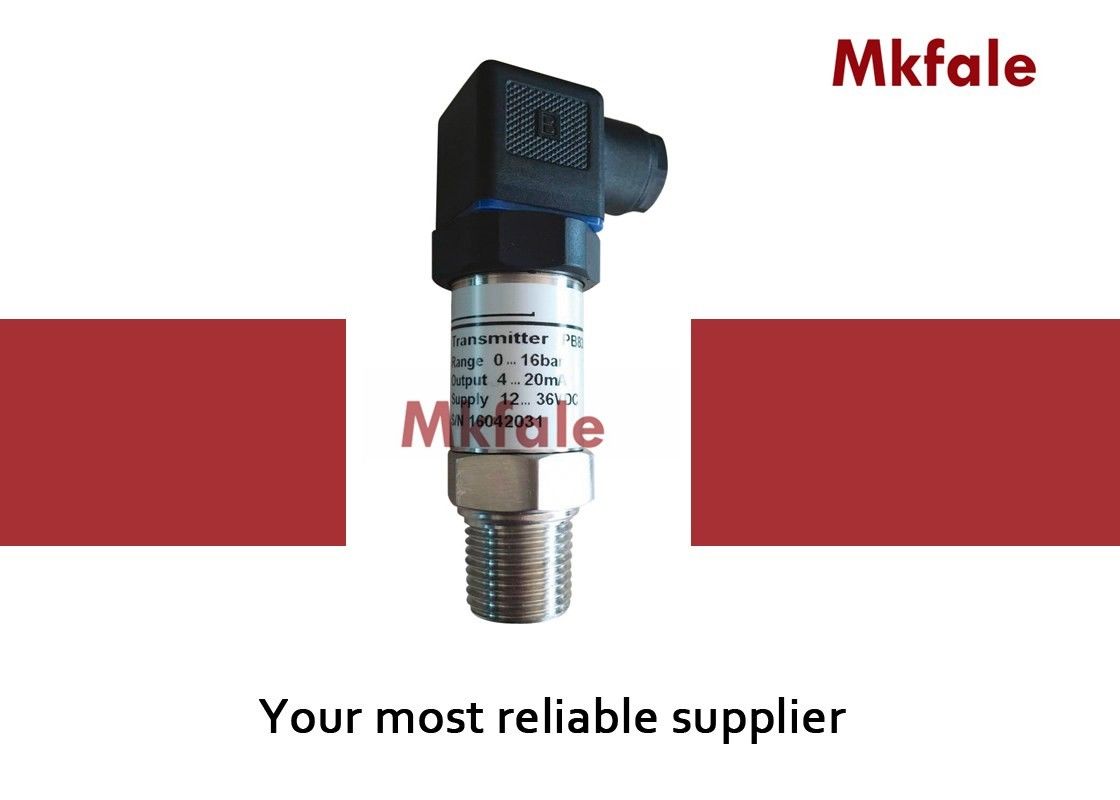

Safety Digital Pressure Transmitter SMPBS10 Series 24VDC , 12VDC - 36VDC Plastic Housing

Safety Digital Pressure Transmitter SMPBS10 Series 24VDC , 12VDC - 36VDC Plastic Housing

    • Safety Digital Pressure Transmitter SMPBS10 Series 24VDC , 12VDC - 36VDC Plastic Housing
    • Safety Digital Pressure Transmitter SMPBS10 Series 24VDC , 12VDC - 36VDC Plastic Housing
    • Safety Digital Pressure Transmitter SMPBS10 Series 24VDC , 12VDC - 36VDC Plastic Housing
  • Safety Digital Pressure Transmitter SMPBS10 Series 24VDC , 12VDC - 36VDC Plastic Housing

    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Model Number: SMPBS10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: 5 - 30 Work Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Accuracy: 0 . 5 % F • S 、 0 . 2 % F• S Measuring Range: - 0 . 1MPa ~ 0 ; 0 ~ ( 10KPa ~ 60MPa ) 、≤ 0 ~ 0 . 5M Liquid Level
    Linear: Superior To 0 . 2 % F S Response Time: ≤ 10mS
    Power Supply: 24VDC、12VDC - 36VDC ( Constant Voltage ) Output: 4 ~ 20mA

    Safety Digital Pressure Transmitter SMPBS10 Series 24VDC , 12VDC - 36VDC Plastic Housing






    Technical Specification Table





    SMPB SERIES PRESSURE

    TRANSMITTER

    SMPBS10
    Accuracy 0.5%F•S,0.2%F•S
    Measuring Range -0.1MPa~0; 0~(10KPa~60MPa) ,≤0~0.5M liquid level
    Linear Superior to 0.2%F S
    1 year stability Superior to 0.2%F S
    Response time ≤10mS
    Power supply 24VDC,12VDC-36VDC(constant voltage)
    Output 4~20mA
    Load(Ω) 0~600Ω(Rz=(V-12)/0.02 (V is supply voltage)
    Proof pressure 150%F S
    Burst pressure 300% F S
    Operating Temp -20~ +85℃(<85℃ use radiating tube )
    Storing Temp -20~ +125℃
    Process connection M20×1.5 ,1/2NPT ,1/2BSP or others
    Enclosure Protection IP63
    Wetted parts SS304
    Diaphragm material SS316L
    Electrical Connections DIN43650 Hersman junction box
    Housing material Plastic
    Power Consume <0.5W
    Weight 250g




    Why choose us



    1: High quality with competitive price .
    2: Sample order & small quantity order is acceptable .
    3: Customize according to your special request .

    4: 12-18month quality guarantee

    5: Large stock for fast shipping .


    FAQ



    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .


    Q: What ' s your business scope ?
    A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .



    Safety Digital Pressure Transmitter SMPBS10 Series 24VDC , 12VDC - 36VDC Plastic Housing
