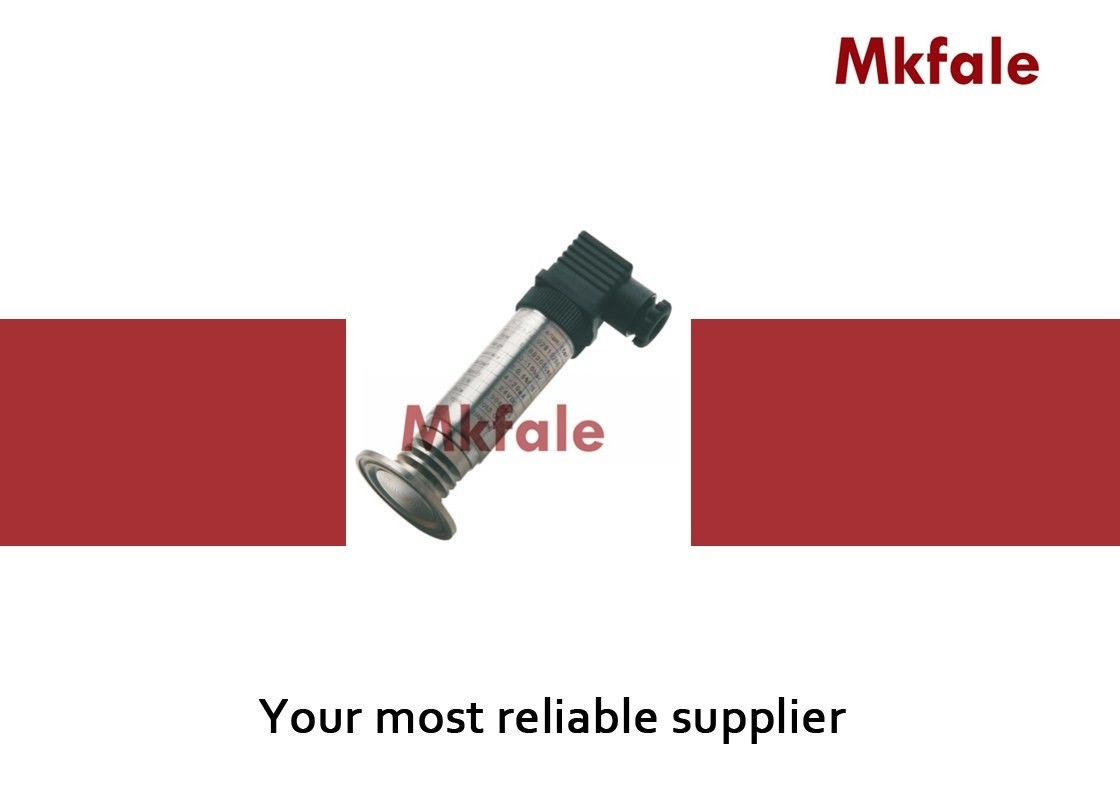

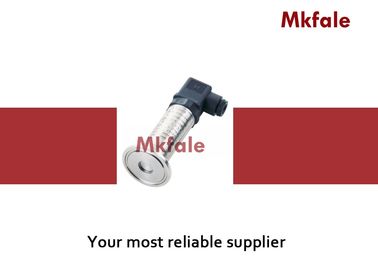

SMPB8300CNK Series Water Differential Pressure Transmitter DIN43650 Plag Connector

SMPB8300CNK Series Water Differential Pressure Transmitter DIN43650 Plag Connector

    • SMPB8300CNK Series Water Differential Pressure Transmitter DIN43650 Plag Connector
    • SMPB8300CNK Series Water Differential Pressure Transmitter DIN43650 Plag Connector
  • SMPB8300CNK Series Water Differential Pressure Transmitter DIN43650 Plag Connector

    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Model Number: SMPB8300CNK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: 5 - 30 Work Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Accuracy: 0.25%F S,0.5%F S(including Linearity.Hysteresis And Repeatability Measuring Range: -1 ... 0bar To -1...25bar,0... 0.1bar To 0... 600bar
    Linear: Superior To 0.25%F S Response Time: ≤ 10ms
    Power Supply: 24VDC ( Or 12 To 36VDC ) Operating Temp: -20 To +85℃
    High Light:

    pressure indicator transmitter

    ,

    high accuracy pressure transmitter

    SMPB8300CNK Series Water Differential Pressure Transmitterr DIN43650 Plag Connector




    Technical Specification Table


    SMPB83 SERIES PRESSURE TRANSMITTERSMPB8300CNK
    Accuracy0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability
    Measuring Range-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar
    LinearSuperior to 0.25%F S
    1 year stabilitySuperior to 0.25%F S
    Response time≤ 10ms
    Power supply24VDC (or 12 to 36VDC)
    Output4 to 20mA
    Load(Ω)<(u-12) / 0.02A
    Proof pressure150%F S
    Burst pressure300%F S
    Operating Temp-20 to +85℃
    Compensated Temp-10 to +70℃
    Storing Temp-40 to +125℃
    Process connection--
    Enclosure ProtectionIP65
    Wetted partsSS304
    Diaphragm materialSS316L
    Housing materialPlastic
    Electrical ConnectionsDIN43650 Plag Connector
    Power Consume<0.5W(24VDC)
    Weight250g




     Why choose us

    1: Various style for each products and completely series industry instruments.
    2: Large stock for fast shipping .
    3: High quality with competitive price .
    4: Sample order & small quantity order is acceptable .
    5: Customize according to your special request .


    FAQ

    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .
    Q: What types of service ?
    A: Supply technical information for your Working condition and give advise about details.


    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .
    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
