|Place of Origin:||China|
|Minimum Order Quantity:||1PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Accuracy:||0.25%F S,0.5%F S(including Linearity.Hysteresis And Repeatability||Measuring Range:||-1 ... 0bar To -1...25bar,0... 0.1bar To 0... 600bar|
|Linear:||Superior To 0.25%F S||Response Time:||≤ 10ms|
|Output:||4 To 20mA||Wetted Parts:||SS304|

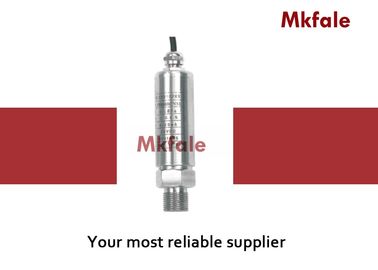

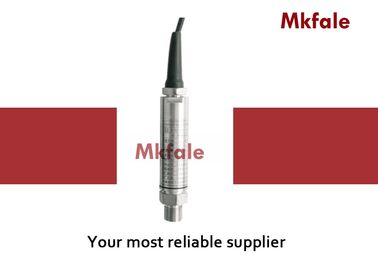

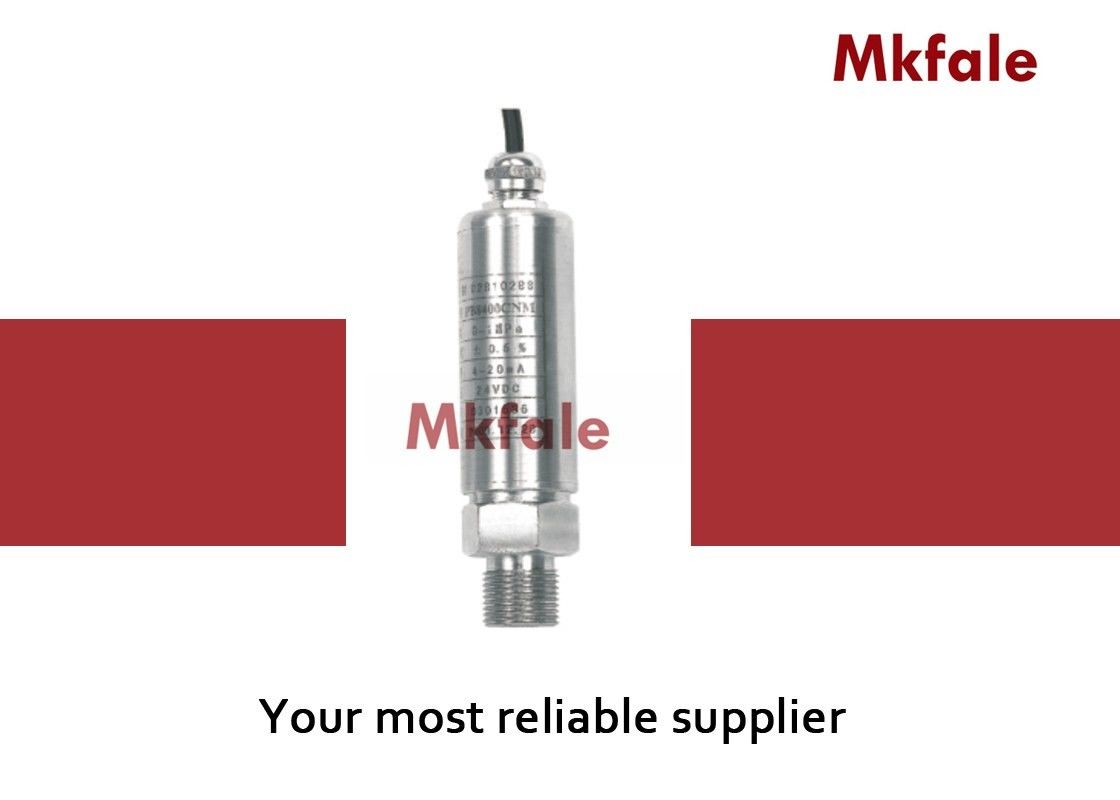

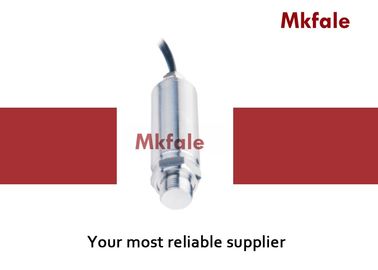

Durable SMPB84 Series Digital Pressure Transmitter M20 * 1 . 5 Male Or 1 / 2NPT Male
Technical Specification Table
SMPB84 SERIES PRESSURE
|Accuracy||0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability|
|Measuring Range||-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar|
|Linear||Superior to 0.25%F S|
|1 year stability||Superior to 0.25%F S|
|Response time||≤ 10ms|
|Power supply||24VDC (or 12 to 36VDC)|
|Output||4 to 20mA|
|Proof pressure||150%F S|
|Burst pressure||300%F S|
|Operating Temp||-20 to +85℃|
|Compensated Temp||-10 to +70℃|
|Storing Temp||-40 to +125℃|
|Process connection||M20*1.5 male or 1/2NPT male|
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
