|Place of Origin:||China|
|Minimum Order Quantity:||1PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Accuracy:||0.25 % To ± 0 . 075 %||Diaphragm Material:||316L , Hastelloy C ,Monel , Ta Stainless Steel .|
|Fill Fluid:||Silicone Oil Glyceride And Water||General Performance:||± 0 . 25 % ( Scale Of 1 : 1 , 28 ℃ Changeable ,6 . 9Mpa )|
|Degrees Of Protection:||IP67||Power Supply:||12 To 45VDC|

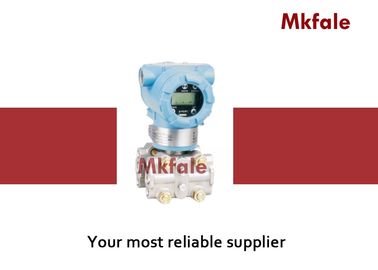

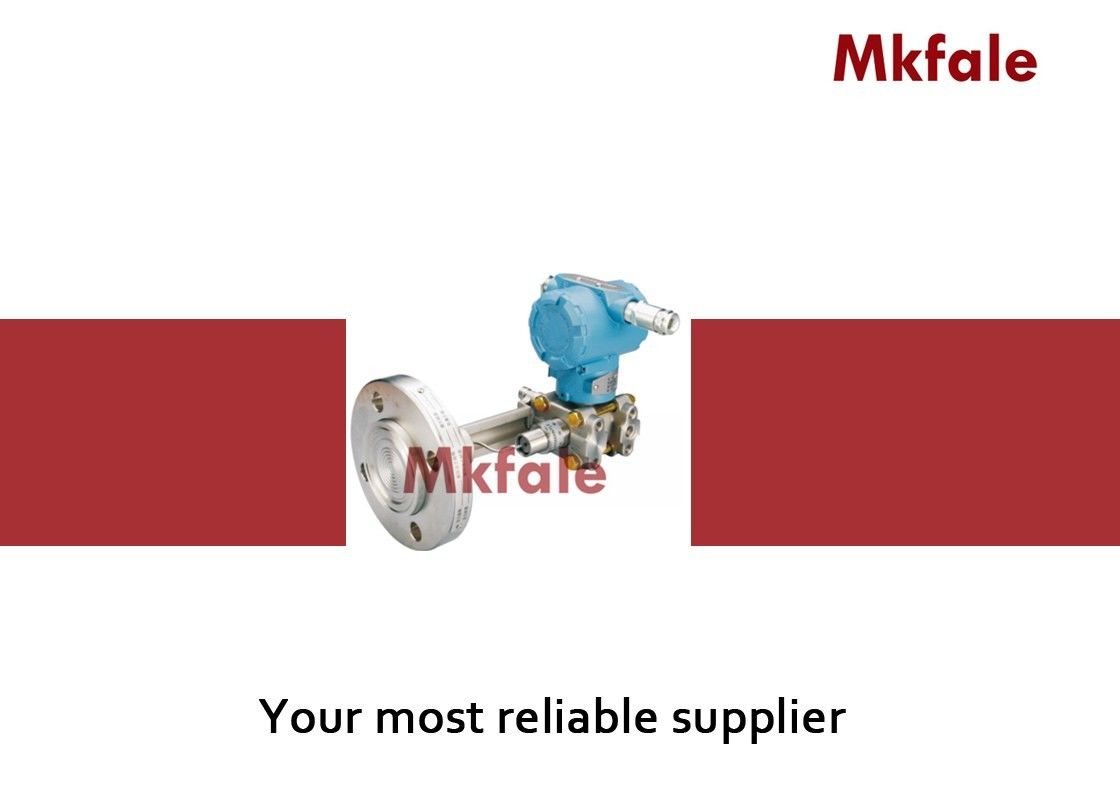

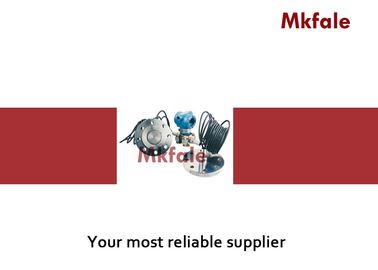

Portable SMSPB Series High Accuracy Pressure Transmitter 12 To 45VDC Power Supply
Technical Specification Table
SMSPB SERIES PRESSURE
|Accuracy||0.25% to ±0.075%|
|Ambient Temp effect/28℃||
Scale ration from 1: 1 to 10: 1:
≤±0 . 2 %, Minim scale ( ≤1.5kpa) :±0.5%
|Influence of pressure||1.Zero error, 0 to 13.7Mpa, ±0.2%/6.9Mpa, 13.7Mpa, ±0.5%/6.9Mpa, 2.full scale error:±0.25%/6.9Mpa|
|Stability||60months,±0.25%F S,28℃, Max pressure: 6.9Mpa, scale for 1:1|
|Place influence||Move less than 250Pa on zero,no influence for scale|
|General performance||±0.25%(scale of 1:1,28℃ changeable,6.9Mpa)|
|Vibration influence||Measure random axis, <±0.1%F S(15 to 2000Hz)|
|Influence of Power supply||effect≤0.005%/V|
Isolation and reverse
No arc light under 50Hz,100Vpp
No damage when reverse connection under 24VDC
|Power Supply||12 to 45VDC|
|Work temperature||-20℃ to +85℃|
|Storing temperature||-40℃ to +104℃|
|Relative humidity||0 to 90%|
|Diaphragm material||316L,Hastelloy C,Monel, Ta stainless steel.|
|Housing Material||Low cooper cast-alaminum alloy with, Polyurethane paint|
|Degrees of protection||IP67|
|Fill Fluid||Silicone oil Glyceride and water|
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
