|Place of Origin:||China|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Features:||Liquid - Sealed Register||Nominal Diameter:||15 , 20 , 25 , 32 , 40|
|Nominal Flow Rate:||1 . 5 / 2 . 5 / 3 . 5 / 6 . 0 / 10 . 0||Pressure:||≤ 1 . 6 MPa|
|Options:||U . S . Gallon ( USG ) For Selecting||Body Thread:||G3 / 4 B , G1B , G1 1 / 4 B , G1 1 / 2B , G2B|

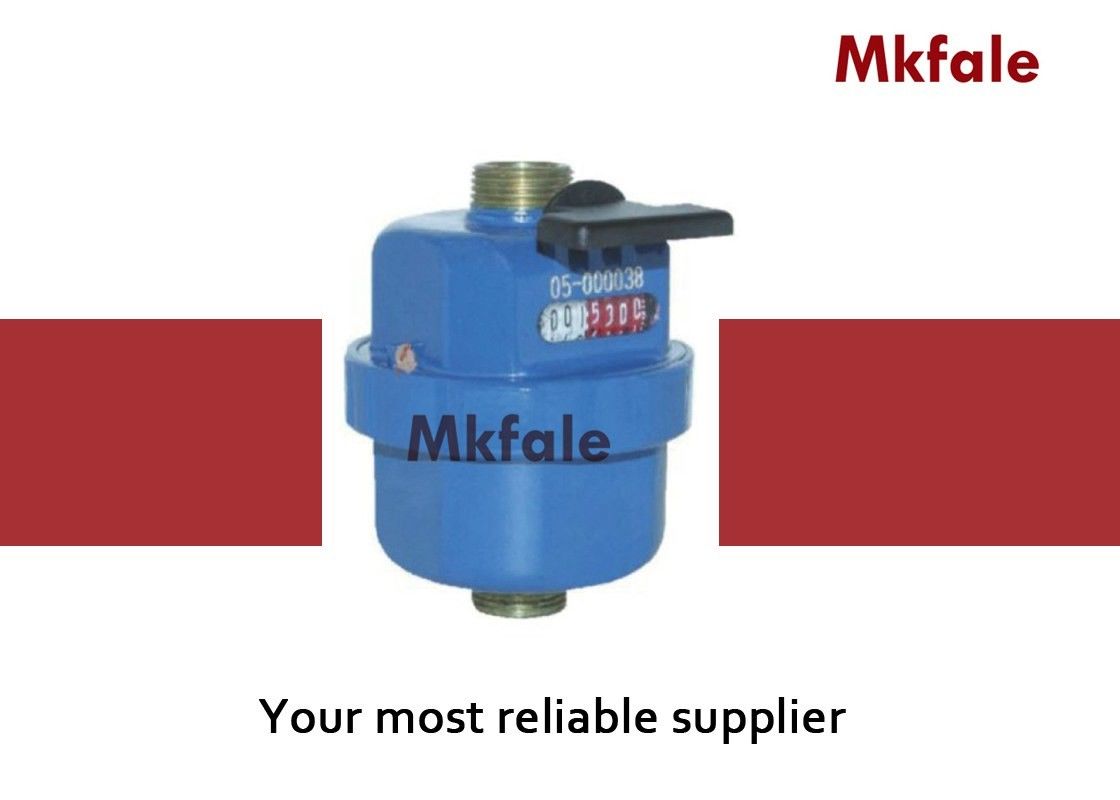

SMXH - 15B ~ 40B Volumetric Rotary Piston Water Meter Corrosion Resistant Body
Application : Measuring the volume of cold potable water passing through the pipeline
Working Conditions : Water temperature : ≤ 40 ℃ , Water Pressure : ≤ 1 . 6 MPa
Feature : Ensures high sensitivity and accurate registration throughout a wide flow range ,
Mechanical transmission movement equates to maximum reliability ,
Corrosion resistant body ,
Liquid - Sealed register ,
Easy reading and long term clear reading ,
Low starting flow rate ,
Internal non return valve,
Compliance with Standard : Technical Data conforms to ISO 4064 Class C Standard
Options : U . S . gallon ( USG ) for selecting , Can be equipped with reed switch option .
Installation Requirements : The meter can be installed in horizontal , vertical or inclined position ,
A vertical position is recommended ,
Pipeline must be flushed before installation ,
The meter should be constantly full of water during operation .
Why choose us
1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
