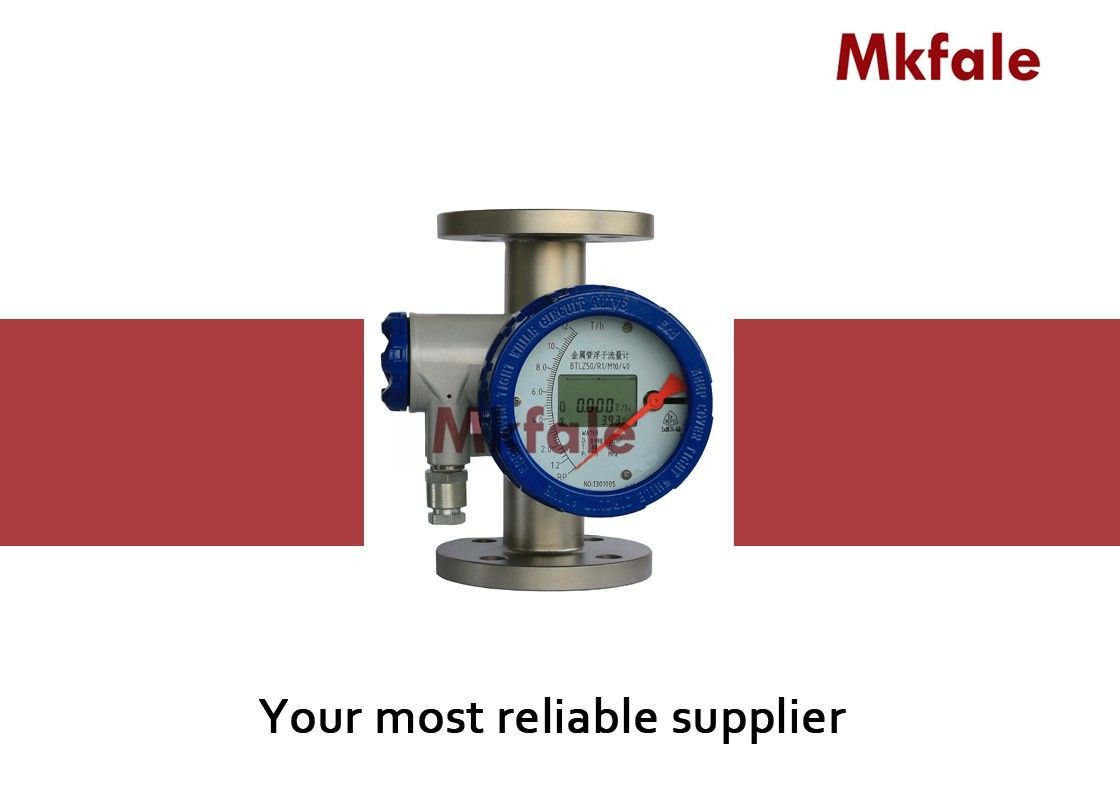

Digital Variable Flow Meter SMTLZ Series Flow Meter With Explosion Proof Metal Tube Flow Meter Rota Meter

Digital Variable Flow Meter SMTLZ Series Flow Meter With Explosion Proof Metal Tube Flow Meter Rota Meter

Digital Variable Flow Meter SMTLZ Series Flow Meter With Explosion Proof Metal Tube Flow Meter Rota Meter

Product Details:

Place of Origin: China
Brand Name: Mkfale
Certification: ISO9001
Model Number: SMTLZ

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Size: 15 ~ 150 Mm Turndown Ratio: 10 : 1 ( 20 : 1 Optional )
Accuracy: ± 1 . 6 % ( Standard ) , ± 1 . 0 % ( Optional ) Repeatability: ± 0 . 5 % Value Of Reading
Material Tube & Float: Stainless Steel Fluid Viscosity: 300 CP Max .

SMTLZ Series Instrument Flow Meter Explosion Proof Metal Tube Variable Area Flowmeter



Features

4 digit flowrate & 8 digit totalizer
Local indication without auxiliary power
4 - 20mA & scale pulse output
Low pressure loss in gas and steam application
Damper for Gas / Steam application
Consistent overall length
Heating jacket design
Intrinsically safe & explosion proof for hazardous area

General

The flowmeter is commonly used in location that required on - site analog flow indication .
The meter accurately measures small volumes / wide ranges of liquids , gases and steam .


Size15 , 20 , 25 , 40 , 50, 65 , 80 , 100 , 125 , 150 mm
Measuring Range

Liquid – 1 ~ 200000 Liter / Hr

Gas – 0.03 ~ 4000 m³ / Hr

Repeatability± 0 . 5 % value of reading
Material Tube & Float

Stainless Steel 304

Stainless Steel 316

Stainless Steel 316L

Stainless Steel + PTFE Liner

Standard Pressure

40 Kg / cm ² ( 15 mm ~ 50mm )

16 Kg / cm ² ( 65 mm ~ 200mm )

Temperature

- 80 ~ +200 ℃ ( Standard )

- 25 ~ + 100 ℃ ( LCD Display )

0 ~ +85 ℃ ( PTFE Liner )

- 80 ~ + 400 ℃ ( Optional )

Flange Type

JIS 10 K / JIS 20K / JIS 40K

ANSI 150 # / ANSI 300 # / ANSI 600 #

DIN PN 10 / PN 16 / PN25 / PN40

Local DisplayMechanical Indicator ( Standard )
Digit Dsplay

4 Digit Flowrate

8 Digit Totalizer

Alarm Output2 point ( Open collector )
Rating3 to 30VDC , 100mA Max .
Keypad3 internal keys for programming and display control
Ambient Temperature- 25 to 60 ℃


Turndown Ratio :
10 : 1 ( 20 : 1 Optional )

Accuracy :
± 1 . 6 % ( Standard )
± 1 . 0 % ( Optional )

Fluid Viscosity :
300 CP Max .

Communication :
RS485 ( MODBUS Protocol )
HART signal ( Compatible )

Current Output :
4 – 20 mA ( 2 Wire )

Load :
Max . 600 Ω

Pulse Output :
Open collector ( Scale Pulse )

Rating :
3 to 30VDC , 100 mA Max

Data Storage :
Operation parameters and totalizer figures are stored by EEPROM for more than10 years


Protection Class
: IP65
: Intrinsically Safe , Eex ia IIC T5
: Explosion Proof , Ex d IIB T6

Housing Material :
Aluminum Alloy

Cable Entry :
Standard : M20 Option : 1 / 2 “ NPTFDigital Variable Flow Meter SMTLZ Series Flow Meter With Explosion Proof Metal Tube Flow Meter Rota Meter
