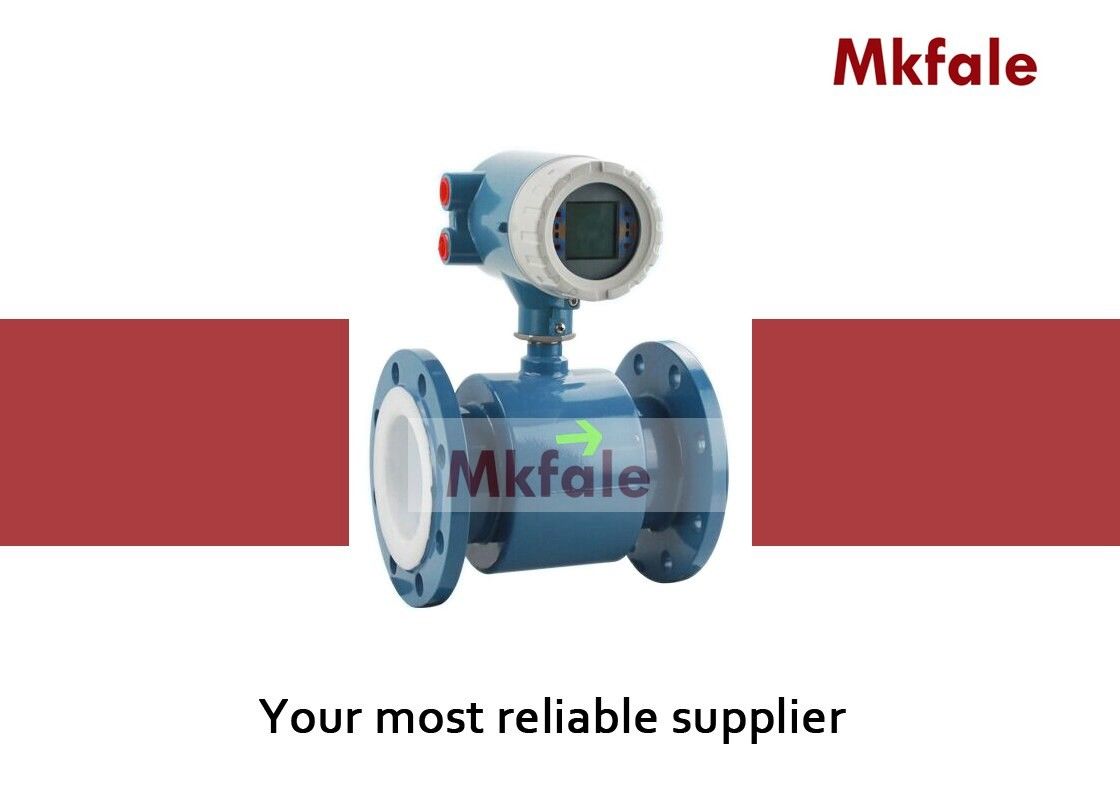

Rosemout Tye Flow Meter Circular Converter Instrument Flow Meter With SMEF DN10 ~ DN3000 Nominal Diameter

Rosemout Tye Flow Meter Circular Converter Instrument Flow Meter With SMEF DN10 ~ DN3000 Nominal Diameter

Rosemout Tye Flow Meter Circular Converter Instrument Flow Meter With SMEF   DN10 ~ DN3000 Nominal Diameter

Product Details:

Place of Origin: China
Brand Name: Mkfale
Certification: ISO9001
Model Number: SMEF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 PCS / Year
Contact Now
Detailed Product Description
Nominal Diameter: DN10 ~ DN3000 Body Material: Cast Steel; Stainless Steel304 ; 316L
Liner Material: PTFE ; PFA ; Neoprene ; Polyurethane ; Ceramic Connection Type: Flange; Clamp; Sanitary; Wafer; Thread
Power: 24VDC ; 220VAC Converter Figure: Square ; Circular

SMEF Rosemount Flow Meter Cold And Heat Measure Function DN10 ~ DN3000 Nominal Diameter Instrument Flow Meter





Water Electromagnetic Flow meter , Vortex flow meter ,  Sanitary electromagnetic flow meter ,  Ultrasonic level meter , Mass flow meter , Variable area flow meter ( Metal Rota Meter ) , Bimetal thermometer,pressure transmitter , level transmitter , Temperature transmitter , needle valve , Water solenoid Valve



Application Fluid: Any electrically conductive liquid; Conductivity: >=5us/cm;
Temperature: Neoprene/PU: -10C-+60C; PTFE/PFA/F46: -10C-+120C
Standard: JB/T9248-1999
Nominal Diameter DN10~DN3000
Body Material Cast steel; SS304; SS316L
Connection Type Flange; Clamp; Sanitary; Wafer; Thread
Structure Type Integral type; Remote type; Remote type immersion;
Integral type Ex-proof; Remote type Ex-proof
Flange Type GB/T9119-2000; JIS 10K; JIS20K; ANSI 150; ANSI 300; DIN Pn10; DIN Pn16; Bs4504; AS4087
Converter Circular
Optional Grounding electrode; Coupled flange
Entrance protection flange; Scraper type electrode; Other



SMEF Electromagnetic Flow Meter



Integrated type



Description



Self-diagnosis, intelligent work

Accuracy: +- 5%; Flow rate: +0.3m/s

Low discharge measurement accuracy and two way measurement.

Underground sensor(IP68) installed without building measuring well

Cold and heat measure function

Double frequency excitation, good zero stable

Build-in ground electrode already

Display: Local flow rate & Total & Flow velocity



Liner Material



PTFE ; PFA ; Neoprene ; Polyurethane ; Ceramic



Electrode Material



316L; Hastelloy B; Hastelloy C

Titanium; Platinum-iridium; Tantalum

Stainless steel covered with tungsten carbide



Power



24VDC; 220VAC 50Hz



Output Communication



Flow volume4~20ADC/pulse;

Flow volume4~20ADC/RS232C communication

Flow volume4~20ADC/RS485 communication;

Flow volume HART output/with communication





FAQ



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.



Why choose us



1: Customize according to your special request .

2: Provide free products information .
3: Reliable quality assured and active after-sell service

4: Large stock for fast shipping .
5: High quality with competitive price .



Rosemout Tye Flow Meter Circular Converter Instrument Flow Meter With SMEF   DN10 ~ DN3000 Nominal Diameter
