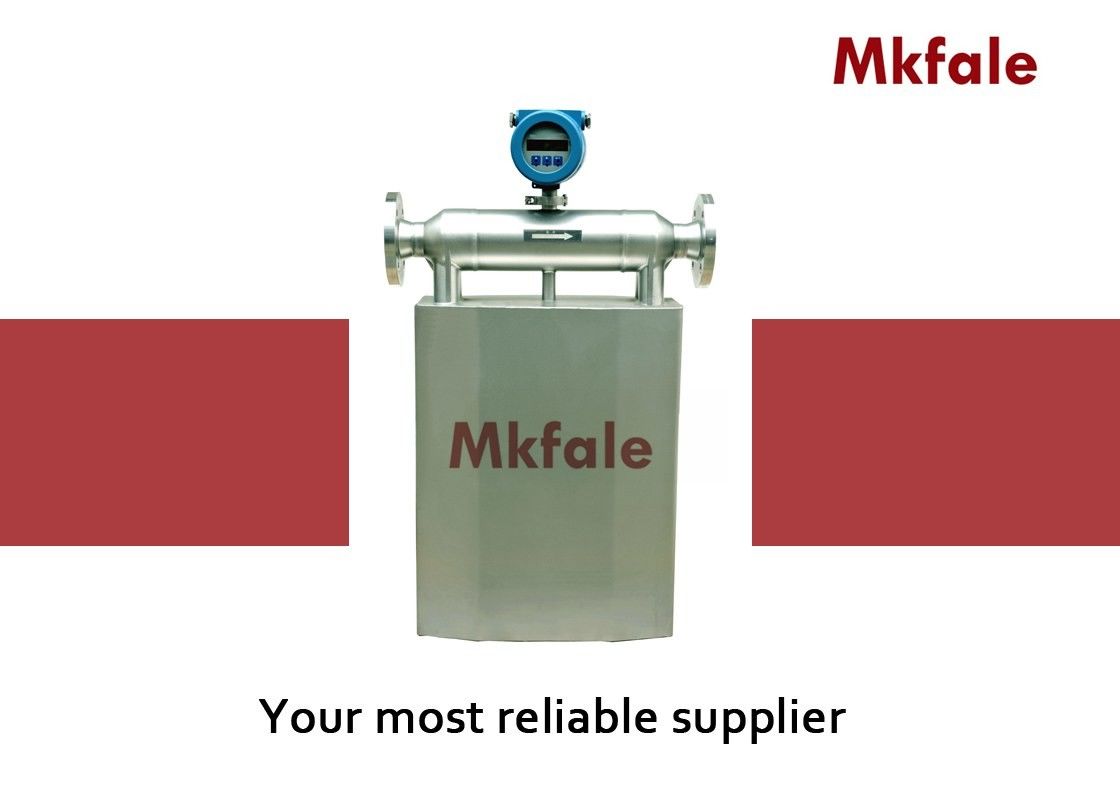

SMCP Coriolis Digital Mass Flow Meters Without Rectification And Filtering Parts , Ease Installation

SMCP Coriolis Digital Mass Flow Meters Without Rectification And Filtering Parts , Ease Installation

SMCP Coriolis Digital Mass Flow Meters Without Rectification And Filtering Parts , Ease Installation

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMCP

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Temp. Range: - 40 ~ 350 °C Process Pressure: ≤ 6 . 3MPa
Measuring Tubes: Stainless Steel 316L Power Supply: 24V DC , 220V AC
Current Output: 4 ~ 20mA Transmitter: DPT100

SMCP Series Coriolis Digital Mass Flow Meters Without Rectification And Filtering Parts , Ease Installation





Products Application



Supplies you with the useful, accurate and

reliable Coriolis Mass Flow Meter, we have sold more than 6000 sets with well performance in

different industry fields up to now. Almost you can find our products well applied in all the

industry measuring fields(custody transfer measurement of traded, process control, quantitatively

filling, etc). Such as:



Petroleum and Natural Gas

Petrol-chemical and Chemical Industries

Food and Medical Industries

Paper-making Industry

Electric Power Industry

Mining Industry

Building Materials Industries



No matter you require only Coriolis Mass Flow Meter or solve the measuring issues in the special

process conditions, we will try our best effort to supply you with the customized measuring

solutions for your industries’ applications, meeting your measuring requirements. Such as:



Gas Measurement

Pulsating Flow Measurement

Concentration and Net Mass Flow Measurement in the Double Composition Fluid

Filling and Quantitatively Control

Process Diagnostic



SMCP Series Coriolis Mass Flow Meter


Including  Sensor and SMDPT100 Transmitter , SMCN Series Coriolis Mass Flow Meter with the
measuring accuracy is of ± 0 . 1 % (liquid),
+-0.35%(Gas)


Advantages & Characteristics



Applying double U or double C type flow tubes designing with the higher sensitivity;



Supplying the complete measurements of mass flow, volume flow, density, temperature and calculated parameters, you can receive the reliable measured results without any complicated calculation, which can directly replace the volume meter;



Ease of installation without rectification and filtering parts, no need special installation required straight pipes;



No moving parts and no need frequent maintenance; no need to be dismounted frequently for calibration because of high stable performance;



Allowing to run with low flow range to reduce pressure loss and power consumption;



Compact installation to save the installation costs;



Compatible with N Series A(flange intervals)size;



With the ultra-high accurate measurement and long time stability, enabling it to be applied in custody transfer measurement of traded;



With the super wide turndown to accurately measure gas;



With strong generality, enabling the connected transmitter to be interchanged, ease of maintenance.



Gas Measurement Performance



Mass flow accuraArialcy  ( flow rate > zero stability / 0 . 005 ) ± 0 . 5 %

                                 ( flow rate < zero stability / 0 . 005 ) ± ( zero stability / instant flow rate ) x 100 %



Mass flow repeatability ( flow rate > zero stability / 0 . 005 ) ± 0 . 25 %
                                  ( flow rate < zero stability / 0 . 005 ) ± 1 / 2 ( zero stability / instant flow rate ) x 100 %







Standard Volume



In most application areas, customers are used to use standard volume to determine the volume under

pressure and temperature, standard volume also called as ”standard mass” flow unit to the fixed

component liquid. Applied to the density under standard condition(receiving from reference data), flow

meter would be output under the configuration of standard volume unit,which means that could be

calculated between measured liquid quality and entrained liquid standard density, but no need the

compensation of pressure, temperature and density. For more information pls. contact your local agency.



Pressure Loss



pressure loss is affected by the sensor geometric form, gas density and flow rate. While customers are

suggested that the sensor pressure loss couldn't surpass 0.127Mpa when design type selection.



Flow Rate



The flow rate of gas measure is much greater than the flow rate of liquid measure, the higher flow rate

leads to the noise will affect the signal of flow meter. So the flow rate within sensor pipe should be lower

0.5 times than sounds rate when the pressure loss of flow meter under 0.127Mpa.



Process Temperature Influence



Process Temperature Influence is defined as below:



Regarding to Mass Flow Measurement, Process Temperature Influence is the maximum zero offset
which is caused by the Process temperature deviates zero coordinate temperature.



Regarding to Density Measurement, process temperature Influence is the maximum measurement
deviation which is caused by the process temperature deviates density calibrated temperature.



Why choose us



1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
