|Place of Origin:||China|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Feature:||This Model Turbine Flow Meter Adopt New Type Sensor With Lower Pressure Loss||Feature 2:||Starting Flow Is Small,anti-corrosion,and With Long Term Work Life.|
|Feature 3:||It Also Have Good Performance On Anti-seismic And Surging Flow||Feature 4:||High Accuracy,0.5% Normally,0.2% In Option.|
|Feature 5:||High Repeatability,its Repeatability Could Reach 0.05%-0.2% In Short-term.||Feature 6:||So This Flow Meter Is A Good Choice In Trade Settlement.|

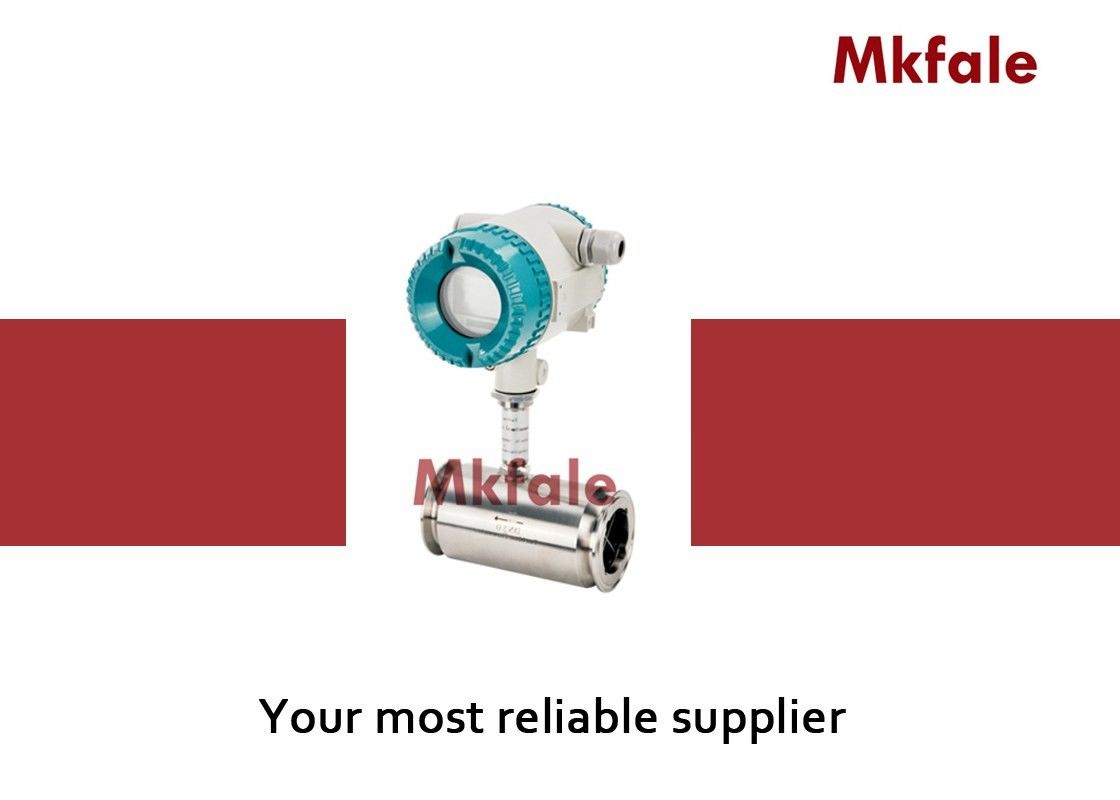

SMTF Anti – Corrosion , Starting Flow Is Small , With Long Term Work Life Turbine Flow Meter
Technical Specification Table
Water Electromagnetic Flow meter , Vortex flow meter , Ceramic Liner electromagnetic flow meter , Sanitary electromagnetic flow meter , Turbine flow meter,Ultrasonic flow meter , Ultrasonic level meter , Mass flow meter , Variable area flow meter ( Metal Rota Meter ) , Stainless steel Gauge,oil liquied gauge , Bimetal thermometer , pressure transmitter , level transmitter , Temperature transmitter , needle valve , Water solenoid Valve , Steam Solenoid Valve
Turbine flow sensor(JB/T9246-1999)
IP65 or higher grade for option.
This model turbine flow meter adopt new type sensor with lower pressure loss, starting flow is small,anti-corrosion,and with long term work life.
It also have good performance on anti-seismic and surging flow.
High accuracy,0.5% normally,0.2% in option.
High repeatability,its repeatability could reach 0.05%-0.2% in short-term.
So this flow meter is a good choice in trade settlement.
This type flow meter use micro-power technology,power consumption is low.
It could be powered by battery or outside power.
|SMTF Turbine Flow Meter||Integrated type|
|Diameter and Connection||4 , 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 65 , 80 Thread connection|
|Measure Ratio||1 : 10 ; 1 : 15 ; 1 : 20|
|Sensor Material||SS304 , SS316L , etc|
|Work Condition||Medium temperature : - 20 ℃ ~ + 120 ℃ , Ambient temperature : - 20 ℃ ~ + 60 ℃ Relative humidity : 5 % ~ 90 % , Atmosphere : 86Kpa ~ 106Kpa|
|Signal Output||Pluse , 4 - 20mA|
|Power Supply||Outside Power supply : + 24VDC ± 15 % Ripple ≤ ± 5 % , apply to 4 - 20mA output , pulse , RS485 communication .Internal power supply : 3 . 0V 10AH Lithium battery , regular work when the voltage in the range of 2V - 3V .|
|Signal Line Interface||Basic model : Houseman joint or three core cable .Explosion proof model : Internal thread M20 * 15|
|Explosion Proof Class||ExiaIICT4 or EXDIIBT6|
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: 12-18month quality guarantee
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
