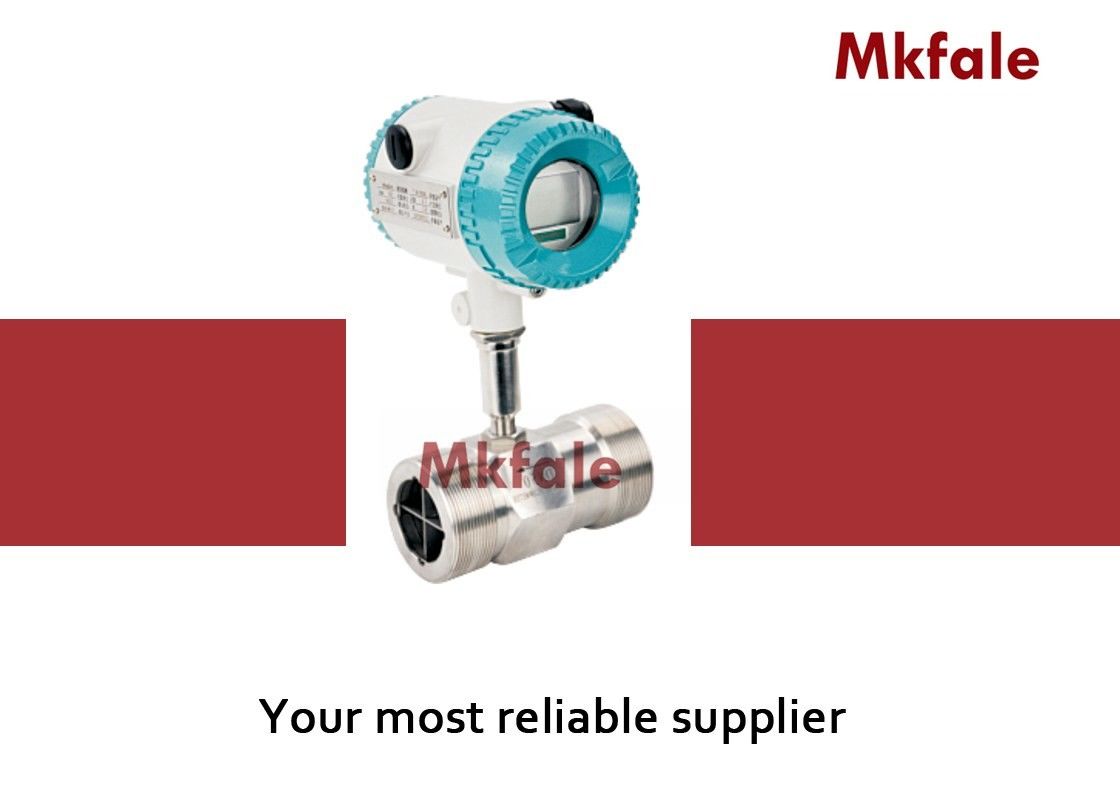

High Performance Electronic Turbine Meter Flowmeters On Anti - Seismic And Surging Flow

High Performance Electronic Turbine Meter Flowmeters On Anti - Seismic And Surging Flow

High Performance Electronic Turbine Meter Flowmeters On Anti - Seismic And Surging Flow

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMTF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
IP Grade: IP65 Or Higher Grade For Option. Communication: RS485、HART
Signal Output: Pluse, 4-20mA Sensor Material: SS304, SS316L, Etc
Measure Ratio: 1:10; 1:15; 1:20 Accuracy: ± 1 % R , ± 0 . 5 % R , ± 0 . 2 % R

High Performance Electronic Turbine Meter Flowmeters On Anti - Seismic And Surging Flow





Water Electromagnetic Flow meter , Ceramic Liner electromagnetic flow meter , STurbine flow meter , Ultrasonic flow meter , Mass flow meter , Variable area flow meter ( Metal Rota Meter ) , oil liquied gauge , Bimetal thermometer ,level transmitter , Temperature transmitter , needle valve , Water solenoid Valve , Steam Solenoid Valve




Technical Specification Table



Diameter and Connection 4 , 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 65 , 80 Thread connection
Work Condition Medium temperature : - 20 ℃ ~ + 120 ℃ , Ambient temperature : - 20 ℃ ~ + 60 ℃ Relative humidity : 5 % ~ 90 % , Atmosphere : 86Kpa ~ 106Kpa
Signal Output Pluse , 4 - 20mA
Communication RS485 ,HART
Power Supply Outside Power supply : + 24VDC ± 15 % Ripple ≤ ± 5 % , apply to 4 - 20mA output , pulse , RS485 communication . Internal power supply : 3 . 0V 10AH Lithium battery , regular work when the voltage in the range of 2V - 3V .
Signal Line Interface Basic model : Houseman joint or three core cable . Explosion proof model : Internal thread M20 * 15


Description:



This model turbine flow meter adopt new type sensor with lower pressure loss ,

starting flow is small , anti – corrosion , and with long term work life.

It also have good performance on anti-seismic and surging flow.

High accuracy , 0 . 5 % normally , 0 . 2 % in option .

High repeatability , its repeatability could reach 0 . 05 % - 0 . 2 % in short – term .

So this flow meter is a good choice in trade settlement.

This type flow meter use micro-power technology , power consumption is low .

It could be powered by battery or outside power.



Accuracy :

±1%R,±0.5%R,±0.2%R(Customized)



Measure Ratio :

1 : 10 ; 1 : 15 ; 1 : 20



Sensor Material :

SS304 , SS316L , etc



Explosion Proof Class :

ExiaIICT4 or EXDIIBT6



IP Grade :

IP65 or higher grade for option .





Water Electromagnetic Flow meter , Vortex flow meter ,Sanitary electromagnetic flow meter , Ultrasonic flow meter ,  Mass flow meter , Variable area flow meter ( Metal Rota Meter ) , oil liquied gauge , Bimetal thermometer,pressure transmitter , level transmitter , Temperature transmitter , needle valve , Water solenoid Valve , Steam Solenoid Valve



Why choose us



1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: Various style for each products and completely series industry instruments.



FAQ



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
