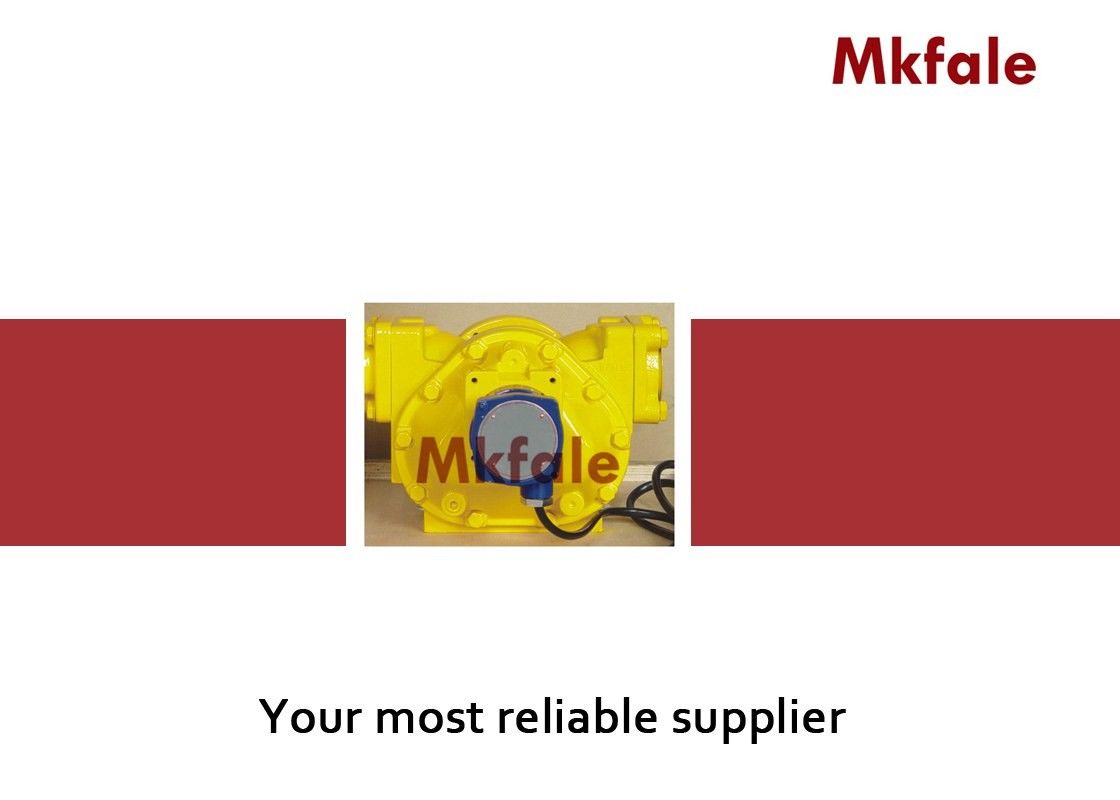

HPD Industry Positive Displacement Flow Meter , Mechanical Type Flow Meter

HPD Industry Positive Displacement Flow Meter , Mechanical Type Flow Meter

    • HPD Industry Positive Displacement Flow Meter , Mechanical Type Flow Meter
    • HPD Industry Positive Displacement Flow Meter , Mechanical Type Flow Meter
  • HPD Industry Positive Displacement Flow Meter , Mechanical Type Flow Meter

    Product Details:

    Place of Origin: China
    Brand Name: Mkfale
    Model Number: HPD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
    Delivery Time: 5 - 30 Work Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Code: HPD40 , HPD50 , HPD80 , HPD100 Size: 1 1 / 2 " , 2 " , 3 " , 4 "
    Flow Range: 250 - 250L / Min , 38 - 380L / Min , 75 - 750L / Min , 130 - 1300L / Min Volume Per Revolution: 0 . 309L / 0 . 681L / 1 . 839L / 5 . 102L
    Pressure: 10Bar / 150PSI Accuracy: ± 0 . 2 %

    HPD Industry Positive Displacement Flow Meter , Mechanical Type Flow Meter








    Robust Positive Displacement mechanical design

    Low pressure loss , long service life

    Calibrator adjustable to 0 . 2 % custody accuracy

    Materials : aluminium , viton seal , veeder – root register in gallons and litres .

    Max pressure 10 bar

    Max temperature 80 ℃

    Sizes range from 40 mm to 100 mm

    Wide range of accessories inc . valves , air elimination & counters , Setstop counter , ticket printer , pulse output






    Code HPD40 HPD50 HPD80 HPD100
    Size 40mm , 1 1 / 2 “ 50mm , 2 “ 80mm , 3 “ 100mm , 4 “
    Flow Range 25 – 250L / min 38 – 380L / min 75 – 750L / min 13 – 1300L / min
    Volume per Revolution 0 . 309L 0 . 681L 1 . 839L 5 . 102L
    Max Pressure 10Bar / 150PSI
    Accuracy ± 0 . 2 %
    Repeatability ≤ 0 . 05 %
    Measurement Litre / Gallon



    Application :



    Refined petroleum products;

    Aviation gasolines and jet fuels;

    A wide variety of products such as: liquid sugars, corn syrup, corn sweeteners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.

    Treated waters (deionized, demineralized, and potable);

    Chlorinated solvents and general solvent metering;

    Acid pH liquids;

    Liquefied petroleum gas(LPG);

    Crude oil, also for heated and/or viscous liquids;

    Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;

    Herbicide;

    Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids

    Abrasive liquids




    Why choose us


    1: Large stock for fast shipping .
    2: High quality with competitive price .
    3: Sample order & small quantity order is acceptable .

    4: Reliable quality assured and active after-sell service
    5: 12-18month quality guarantee






    FAQ



    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



    Q: What types of service ?
    A: Supply technical information for your Working condition and give advise about details.


    Q: What ' s your business scope ?
    A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

    Q: What is the price of the product ?
    A: Our prices are based on the size and type of material , if you can give me the information ,
    then we can give you an estimated price is for reference only . We can do any size and any desgin .
