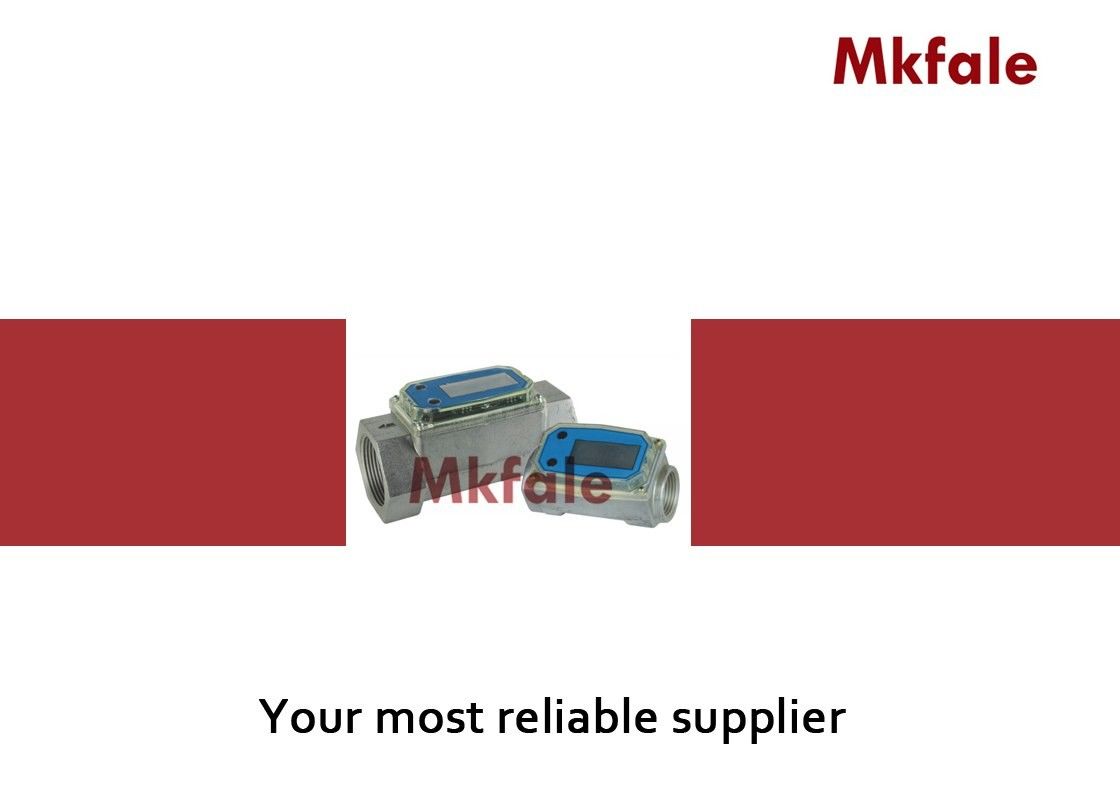

SMSS Digital Positive Displacement Flow Meter , Turbine Flowmeters With NPT / BSP Fittings

SMSS Digital Positive Displacement Flow Meter , Turbine Flowmeters With NPT / BSP Fittings

SMSS Digital Positive Displacement Flow Meter , Turbine Flowmeters With NPT / BSP Fittings

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMSS

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Thread Type: NPT / BSP (Female ) Material: Aluminum
Port Size: 3 / 4 " , 1 " , 1 - 1 / 2 " Flow Range: 2 ~ 20GPM , 5 - 50GPM , 10 -100GPM
Accuracy: 0 . 5 % ~ 1 % Repeatability: 0 . 1 %
High Light:

positive displacement water meter

,

Oval Gear Flow Meter

SMSS Digital Turbine Flow Meter Model Are Available With NPT / BSP Fittings







Features



High precision, durable and compact turbine flowmeters.

Modular design allows for use with Output Modules, Sensors and Remote Transmitters.

Local Display Computer features: 2 Totals (1 Resettable, 1 Cumulative); Factory Calibration in gallons and litres; 2 User Calibrations and Flowrate.

Internal parts are simple to replace for easy maintenance.

Lightweight, compact design allows for easy installation.

Powered by Lithium batteries for approximately 9,000 hours.





Specifications



Turbine Digital Diesel Fuel Flow Meter
1. high accuracy
2. less maintainence
3. long battery duration



Factory Calibration in gallons and litres ; 2 Useer Calibrations and Flowrate .

Power by 2 × AAA Batteries ( Approx life 9000 hours )

Local Display Computer Features : 2 Totals ( 1 Resettable , 1 Cumulative );

High precision , durable and compact turbine flow meters .

Designed to fit inline with the delivery hose or pipework

Only suirable with Diesel , or Biodiesel , Kerosene .

Models are available with NPT / BSP fittings




Technical Specification Table



Fitting Type : NPT or BSP ( Female )



Housing Material : Aluminum



Meter Sizes Available : 3 / 4 “ , 1 “ , 1 – 1 / 2 “



Flow Range :

3 / 4 “ , 2 ~ 20 GPM ( 7 . 6 – 75.7 LPM )

1 “ , 5 ~ 50 GPM ( 18. 9 – 190 LPM )

1 – 1 / 2 “ , 10 ~ 100 GPM ( 38.0 ~ 380 LPM )



Accuracy ( % of Reading ) :

3 / 4 “ , ± 1 %

1 “ , ± 1 %

1 – 1 / 2 ‘ , ± 0 . 5 %



Repeatability : ± 0 . 1 %



Pressure Rating : 300PSI / 21BAR



Operating Temperature Range : -40 °F to + 250 °F ( - 40 ℃ to + 121 ℃ )





Application



GPI digital turbine flowmeters are best suited for petroleum based products. The modular design allows for maximum flexibility in meeting customer’s applications. Models are available with NPT/BSP or flange fittings.


Why choose us



1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee



FAQ



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
