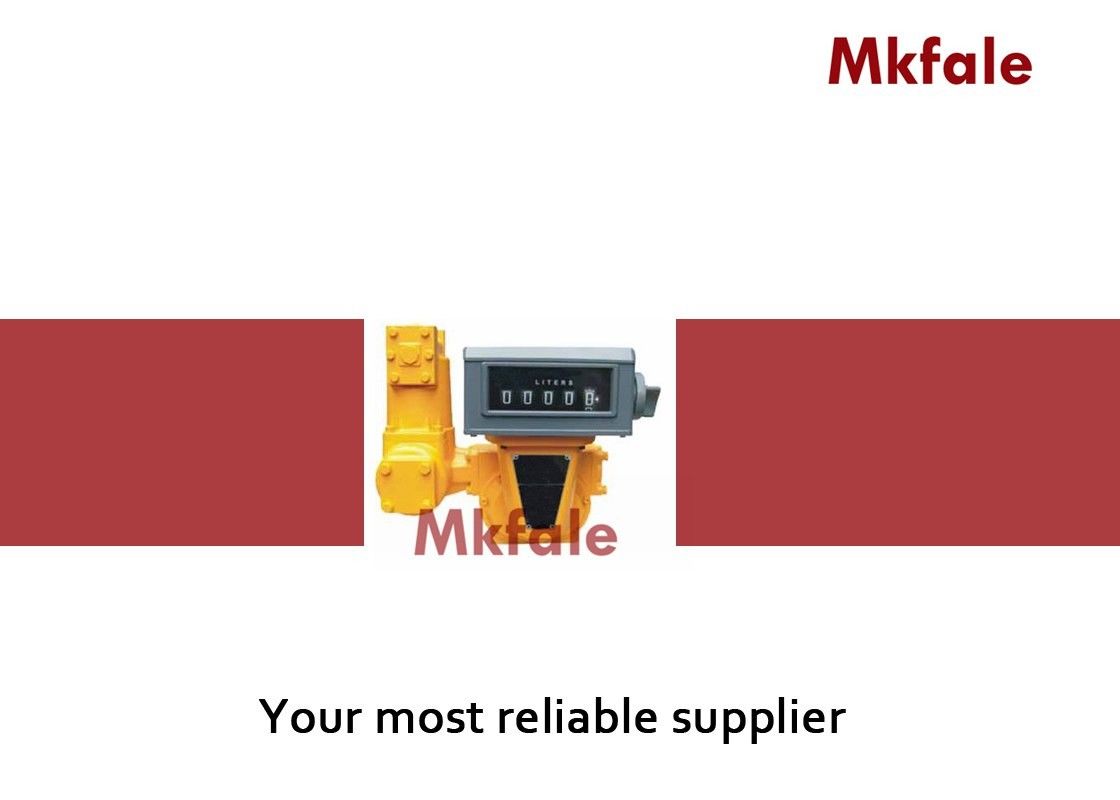

Low Conductive Positive Displacement Flow Meter 40mm To 100mm Sizes Range

Low Conductive Positive Displacement Flow Meter 40mm To 100mm Sizes Range

Low Conductive Positive Displacement Flow Meter 40mm To 100mm Sizes Range

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: HPD

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Code: HPD40 , HPD50 , HPD80 , HPD100 Size: 1 1 / 2 " , 2 " , 3 " , 4 "
Flow Range: 25 - 250L / Min , 38 - 380L / Min , 75 - 750L / Min , 130 - 1300L / Min Volume Per Revolution: 0 . 309L / 0 . 681L / 1 . 839L / 5 . 102L
Pressure: 10Bar / 150PSI Accuracy: ± 0 . 2 %

Low Conductive Positive Displacement Flow Meter 40mm To 100mm Sizes Range





Technical Specification Table

Code : HPD40 , HPD50 , HPD80 , HPD100
Size : 40mm , 1 1 / 2 “ ; 50mm , 2 “ ; 80mm , 3 “ ; 100mm , 4 “ .
Flow Range : 25 – 250L / min ; 38 – 380L / min ; 75 – 750L / min ; 13 – 1300L / min
Volume per Revolution ; 0 . 309L ; 0 . 681L ; 1 . 839L ; 5 . 102L
Max Pressure : 10Bar / 150PSI
Accuracy : ± 0 . 2 %
Repeatability ≤ 0 . 05 %
Measurement ; Litre / Gallon

Robust Positive Displacement mechanical design
Low pressure loss , long service life
Calibrator adjustable to 0 . 2 % custody accuracy
Materials : aluminium , viton seal , veeder – root register in gallons and litres .
Max pressure 10 bar
Max temperature 80 ℃
Sizes range from 40 mm to 100 mm
Wide range of accessories inc . valves , air elimination & counters , Setstop counter , ticket printer , pulse output



Application

Treated waters (deionized, demineralized, and potable);
Chlorinated solvents and general solvent metering;
Liquefied petroleum gas(LPG);
Crude oil, also for heated and/or viscous liquids;
Herbicide;
Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids
Abrasive liquids
Refined petroleum products;
Aviation gasolines and jet fuels;
A wide variety of products such as: liquid sugars, corn syrup, corn sweeteners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.
Acid pH liquids;
Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;
