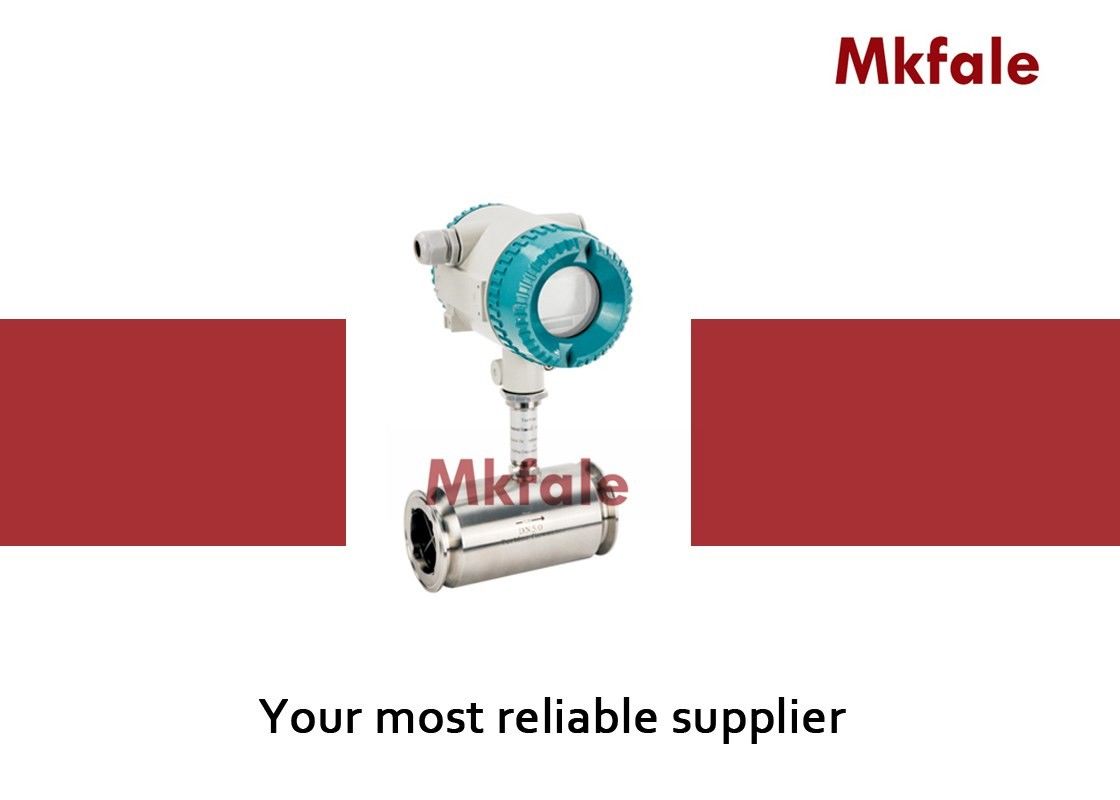

Energy Saving Turbine Water Flow Meter , Digital Flow Meter With LCD Display

Energy Saving Turbine Water Flow Meter , Digital Flow Meter With LCD Display

Energy Saving Turbine Water Flow Meter , Digital Flow Meter With LCD Display

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SMTF Wafer Type Integrated

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Accuracy: ± 1 % R , ± 0 . 5 % R , ± 0 . 2 % R , Customized Body: Stainless Steel 304 / 316L , Etc
Diameter: 4 , 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 65 , 85 Connection: Thread Connection
Communication: RS485 , HART IP Grade: IP65 Or Higher Grade For Option

Energy Saving Turbine Water Flow Meter , Digital Flow Meter With Lcd Display








SMTF Turbine Flow Meter :

Wafer Type



Description:

This model turbine flow meter adopt new type sensor with lower pressure loss ,

starting flow is small , anti – corrosion , and with long term work life.

It also have good performance on anti-seismic and surging flow.

High accuracy , 0 . 5 % normally , 0 . 2 % in option .

High repeatability , its repeatability could reach 0 . 05 % - 0 . 2 % in short – term .

So this flow meter is a good choice in trade settlement.

This type flow meter use micro-power technology , power consumption is low .

It could be powered by battery or outside power.



Carried Standard :

Turbine flow sensor ( JB / T9246 – 1999 )



Diameter and Connection :

4 , 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 65 , 80 Thread connection



Accuracy :

±1%R,±0.5%R,±0.2%R(Customized)



Measure Ratio :

1 : 10 ; 1 : 15 ; 1 : 20



Sensor Material :

SS304 , SS316L , etc



Work Condition:

Medium temperature : - 20 ℃ ~ + 120 ℃ , Ambient temperature : - 20 ℃ ~ + 60 ℃

Relative humidity : 5 % ~ 90 % , Atmosphere : 86Kpa ~ 106Kpa



Signal Output :

Pluse , 4 - 20mA



Communication :

RS485 ,HART



Power Supply :

Outside Power supply : + 24VDC ± 15 % Ripple ≤ ± 5 % , apply to 4 - 20mA output , pulse , RS485 communication

Internal power supply : 3 . 0V 10AH Lithium battery , regular work when the voltage in the range of 2V - 3V .



Signal Line Interface :

Basic model : Houseman joint or three core cable .

Explosion proof model : Internal thread M20 * 15



Explosion Proof Class :

ExiaIICT4 or EXDIIBT6



IP Grade :

IP65 or higher grade for option .




Measure range and work pressure



Diameter

mm

Normal Measure Range m ³ / h

Extended Measure Range

m ³ / h

Acquiescent Installation Method And Streets Levels Optional Installation Method And Stress Level Designated Stress Level MPa
DN4 0 . 04 ~ 0 . 25 0 . 04 ~ 0 . 4 Thread , 6 . 3MPa Flange , 2 . 5 MPa 12 , 16 , 25
DN6 0 . 1 ~ 0 . 6 0 . 06 ~ 0 . 6 Thread , 6 . 3MPa Flange , 2 . 5 MPa 12 , 16 , 25
DN10 0 . 2 ~ 1 . 2 0 . 15~ 1 . 5 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN15 0 . 6 ~ 6 0 . 4 ~ 8 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN20 0 . 8 ~ 8 0 . 45 ~ 9 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN25 1 ~ 10 0 . 5 ~ 10 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN32 1 . 5 ~ 15 0 . 8 ~ 15 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN40 2 ~ 20 1 ~ 20 Thread , 6 . 3MPa Flange , 2 . 5 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN50 4 ~ 40 2 ~ 40 Flange , 2 . 5MPa Flange , 6 . 3 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN65 7 ~ 70 4 ~ 70 Flange , 1 . 6MPa Flange , 6 . 3 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN80 10 ~ 100 5 ~ 100 Flange , 1 . 6MPa Flange , 6 . 3 MPa 4 . 0 , 6 . 3 , 12 , 16 , 25
DN100 20 ~ 200 10 ~ 200 Flange , 1 . 6MPa   4 . 0 , 6 . 3 , 12 , 16 , 25
DN125 25 ~ 250 13 ~ 250 Flange , 1 . 6MPa   2 . 5 , 4 . 0 , 6 . 3 , 12 , 16
DN150 30 ~ 300 15 ~ 300 Flange , 1 . 6MPa   2 . 5 , 4 . 0 , 6 . 3 , 12 , 16
DN200 80 ~ 800 40 ~ 800 Flange , 1 . 6MPa   2 . 5 , 4 . 0 , 6 . 3 , 12 , 16





 Energy Saving Turbine Water Flow Meter , Digital Flow Meter With LCD DisplayEnergy Saving Turbine Water Flow Meter , Digital Flow Meter With LCD Display
