|Place of Origin:||China|
|Model Number:||SM2SB 40B / L|
|Minimum Order Quantity:||1PC|
|Packaging Details:||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice|
|Delivery Time:||5 - 30 Work Days|
|Payment Terms:||L/C, T/T, Western Union|
|Nominal Size:||40 Mm||Accuracy Class:||Class 2 . 5|
|Ingress Protection.:||IP65||Connection Size:||G1 / 8 Or NPT Or Others|
|Filling:||Dry Or Liquid Filled||Connection:||Brass|

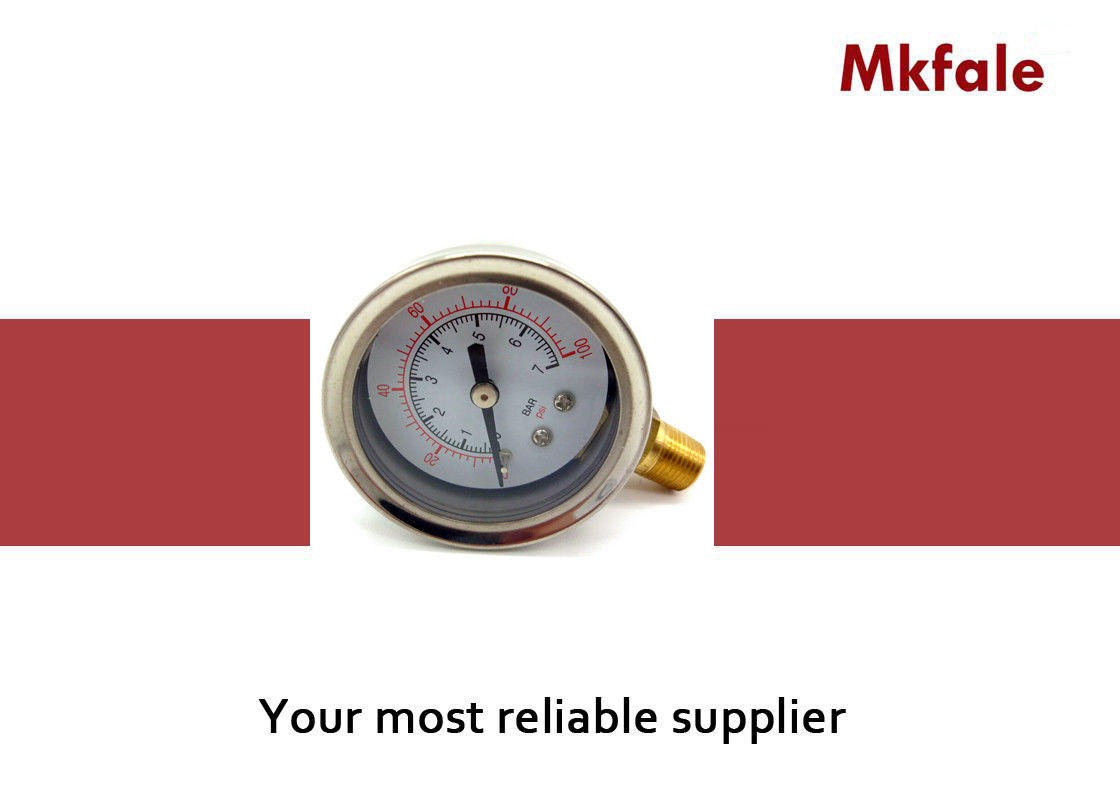

SM2SB 40B / L Normal Two Piece Screwed Connection Stainless Steel Case Pressure Gauge
Technical Specification Table
|NORMAL TWO PIECE SCREWED CONNECTION STAINLESS STEEL CASE PRESSURE GAUGE||SM2SB|
Applicable for pneumatic and hydraulic
sprinkles system,building automation
system and processing unit where
vibration is concern.
Accuracy class 2.5,class 1.6, Wide range vibration application
Stainless steel case design, Knock-down system back and front flange
Two piece screwed connection design, Over pressure up to 30% of Full Scale
Restrictor screw standard, Excellent vibration resist with liquid filling
Design scale ranges up to 600 bar
|Technical Specification||Nominal Size||40, 50, 63,75,100 and 150mm|
|Accuracy Class||Class 2.5,Class 1.6(≥100mm)|
|Connection Size||G1/8,G1/4,G1/2 or NPT or others|
|Scale Range||Pressure 0..600 bar, Vacuum -1 bar..0, Compound -1..24 bar|
|Filling||Dry or liquid filled|
|Tube Element Shape||P≤100 bar in C tube, P＞100 bar in helicoil|
|Operating Temperature||Ambient temperature -10° ..+70° C, Medium temperature 90° C Max.|
Additional error when pressure element tmperature
deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
|Over Pressure Limit||130% of F.S.P ≤100 bar, 115% of F.S.P ＞100bar|
|Dial Graduation||Black graduation on white for single range, Black and red graduation on white for dual ranges|
|Design Material||Casing and Bezel Ring||Copper alloy(SM2SB)|
|Sensing Element||Copper alloy(SM2SB)|
|Window gasket||Industrial rubber seal|
|Pointer||Black painted aluminium|
|Dial Plate||Aluminium alloy|
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
