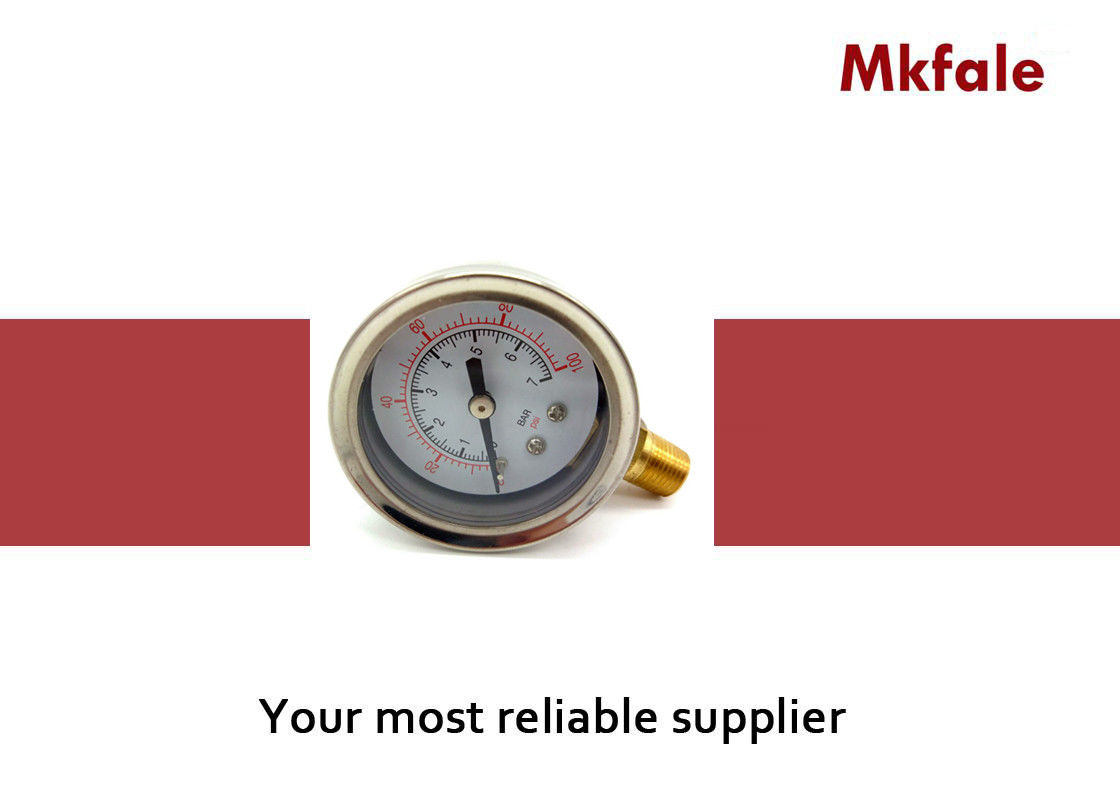

Plastic Window Liquid Filled Pressure Gauge For Pneumatic And Hydraulic System

Plastic Window Liquid Filled Pressure Gauge For Pneumatic And Hydraulic System

Plastic Window  Liquid Filled Pressure Gauge For Pneumatic And Hydraulic System

Product Details:

Place of Origin: China
Brand Name: Mkfale
Model Number: SM2SB

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: 5 - 30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Nominal Size: 50 Mm Accuracy Class: Class 2 . 5
Connection Size: G1 / 4 Sensing Element: Copper Alloy
Pointer: Black Painted Aluminium Dial Plate: Aluminium Alloy

Plastic Window Liquid Filled Pressure Gauge For Pneumatic And Hydraulic System





NORMAL TWO PIECE SCREWED CONNECTION STAINLESS STEEL CASE PRESSURE GAUGE SM2SB

Application

Applicable for pneumatic and hydraulic , systems , compressors , engines , pumps , sprinkles system , building automation system and processing unit where vibration is concern.

Features

Accuracy class 2 . 5 , class 1 . 6 , Wide range vibration application
Stainless steel case design , Knock - down system back and front flange
Two piece screwed connection design , Over pressure up to 30 % of Full Scale
Restrictor screw standard , Excellent vibration resist with liquid filling
Design scale ranges up to 600 bar

Technical Specification

Nominal Size : 40 , 50 , 63 ,75 ,100 and 150mm
Accuracy Class : Class 2 . 5 , Class 1 . 6 ( ≥ 100mm )
Ingress Protection. : IP65
Connection Size : G1 / 8 , G 1 / 4 , G1 / 2 or NPT or others
Scale Rang : Pressure 0 .. 600 bar , Vacuum - 1 bar .. 0 , Compound - 1 .. 24 bar
Filling : Dry or liquid filled
Tube Element Shape : P ≤ 100 bar in C tube , P > 100 bar in helicoil
Operating Temperature : Ambient temperature – 10 ° .. + 70 ° C , Medium temperature 90 ° C Max.
Temperature Error : Additional error when pressure element tmperature
deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
Over Pressure Limit : 130 % of F . S . P ≤ 100 bar , 115 % of F . S . P > 100bar
Dial Graduation : Black graduation on white for single range, Black and red graduation on white for dual ranges

Design Material

Casing and Bezel Ring : Copper alloy ( SM2SB )
Sensing Element : Copper alloy ( SM2SB )
Connection : Brass ( SM2SB )
Window : Plastic
Window gasket : Industrial rubber seal
Pointer : Black painted aluminium
Dial Plate : Aluminium alloy

Why choose us
1: Various style for each products and completely series pneumatic products .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service


FAQ

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
